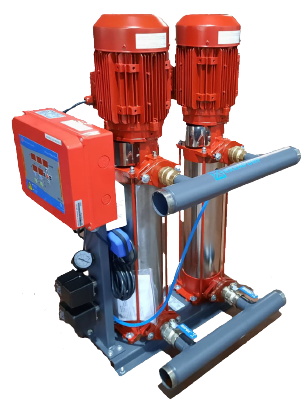

EXDP-Y 2/606 Two Pump Fire Hydraulic Pump (2x6m³/h-60mSS)
2.074,28 USD
Category
Brand
Stock code
exdpy2606
Manufacturing Period
24 Month
Price
2.074,28 USD
to; width: 100%; font-size: 14pt;">
TWO PUMP VERTICAL SHAFT FIRE HYDROPHORS
EXDP-Y 600 SERIES
High quality and affordable prices are offered as standard with EXDP-Y Series Noryl Fan Fire Hydrophore Systems. Requiring high pressure water supply; • In high-rise building applications such as apartments etc. • Suitable for use in pressurizing fire installation systems. ( Fully automatic, weekly tested, sound and light alarm)
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Flow 2x6m³/h | Flow 2x12m³/h | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | Pressure mSS | Pressure mSS | ||||||
| EXDP-Y 2/604 | 2x2 | 2x1.5 | 2x13 | 48 | 40 | 20 | 2" | 2" | 100/10 |
| EXDP-Y 2/606 | 2x2 | 2x1.5 | 2x13 | 70 | 60 | 30 | 2" | 2" | 100/10 |
| EXDP-Y 2/608 | 2x3 | 2x2,2 | 2x13 | 92 | 80 | 40 | 2" | 2" | 100/10 |
| EXDP-Y 2/610 | 2x4 | 2x3 | 2x13 | 118 | 95 | 50 | 2" | 2" | 100/16 |
| EXDP-Y 2/612 | 2x5.5 | 2x4 | 2x13 | 142 | 110 | 55 | 2" | 2" | 100/16 |
| SCOPE OF DELIVERY |
* 2xVertical Shaft Centrifugal Pump
* Two Pump Control Panels
* Manometer
* 2xPressure Switch
* Level Floater
* Pump Chassis
* Suction - Discharge Collectors
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
* EXDP Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
* Installation Service of the Product is the responsibility of the User.
* In order for the product to be under warranty, the first start-up must be done by EXENPUMP Authorized Services.
* Commissioning is free of charge.
