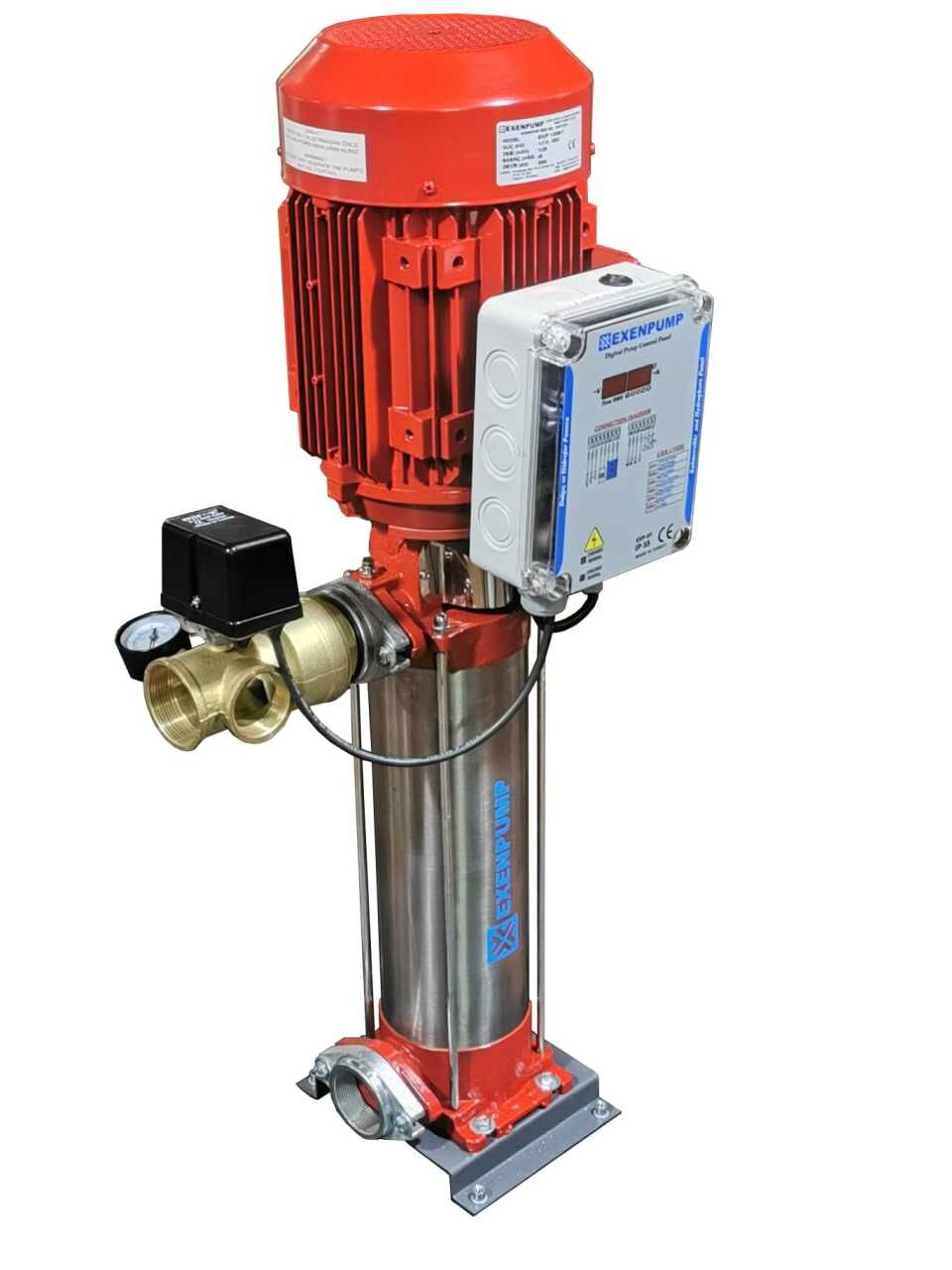

EXDP-Y 1/2006 Single Pump Fire Hydraulic Pump (30m³/h-52mSS)
2.854,88 USD
Category
Brand
Stock code
exdpy12006
Manufacturing Period
24 Month
Price
2.854,88 USD
div style="text-align: center;">
SINGLE PUMP VERTICAL SHAFT FIRE HYDROPHORS EXDP-Y 2000 SERIES |  |
High quality and affordable prices are offered as standard with EXDP-Y Series Noryl Fan Fire Hydrophore Systems. Requiring high pressure water supply; • In high-rise building applications such as apartments etc. • Suitable for use in pressurizing fire installation systems. ( Fully automatic, weekly tested, sound and light alarm)
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Flow 18m³/h | Flow 24m³/h | Flow 30m³/h | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | Pressure mSS | Pressure mSS | Pressure mSS | ||||||
| EXDP-Y 1/2004 | 7.5 | 5.5 | 45 | 60 | 50 | 45 | 40 | 2" | 2" | 100/10 |
| EXDP-Y 1/2006 | 10 | 7.5 | 45 | 90 | 65 | 62 | 52 | 2" | 2" | 100/10 |
| EXDP-Y 1/2008 | 15 | 11 | 45 | 120 | 85 | 80 | 70 | 2" | 2" | 100/16 |
| EXDP-Y 1/2010 | 15 | 11 | 45 | 148 | 110 | 92 | 80 | 2" | 2" | 100/16 |
| EXDP-Y 1/2012 | 20 | 15 | 45 | 178 | 120 | 105 | 90 | 2" | 2" | 100/25 |
| SCOPE OF DELIVERY |
* Vertical Shaft Centrifugal Pump
* Single Pump Control Panel
* Manometer
* Pressure Switch
* 5 Way Connector
* Level Floater
* Pump Chassis
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
