EXDP-Y 1/1512 Single Pump Fire Hydrophore (24m³/h-82mSS)
3.479,16 USD
Category
Brand
Stock code
exdpy11512
Manufacturing Period
24 Month
Price
3.479,16 USD
div style="text-align: center;">

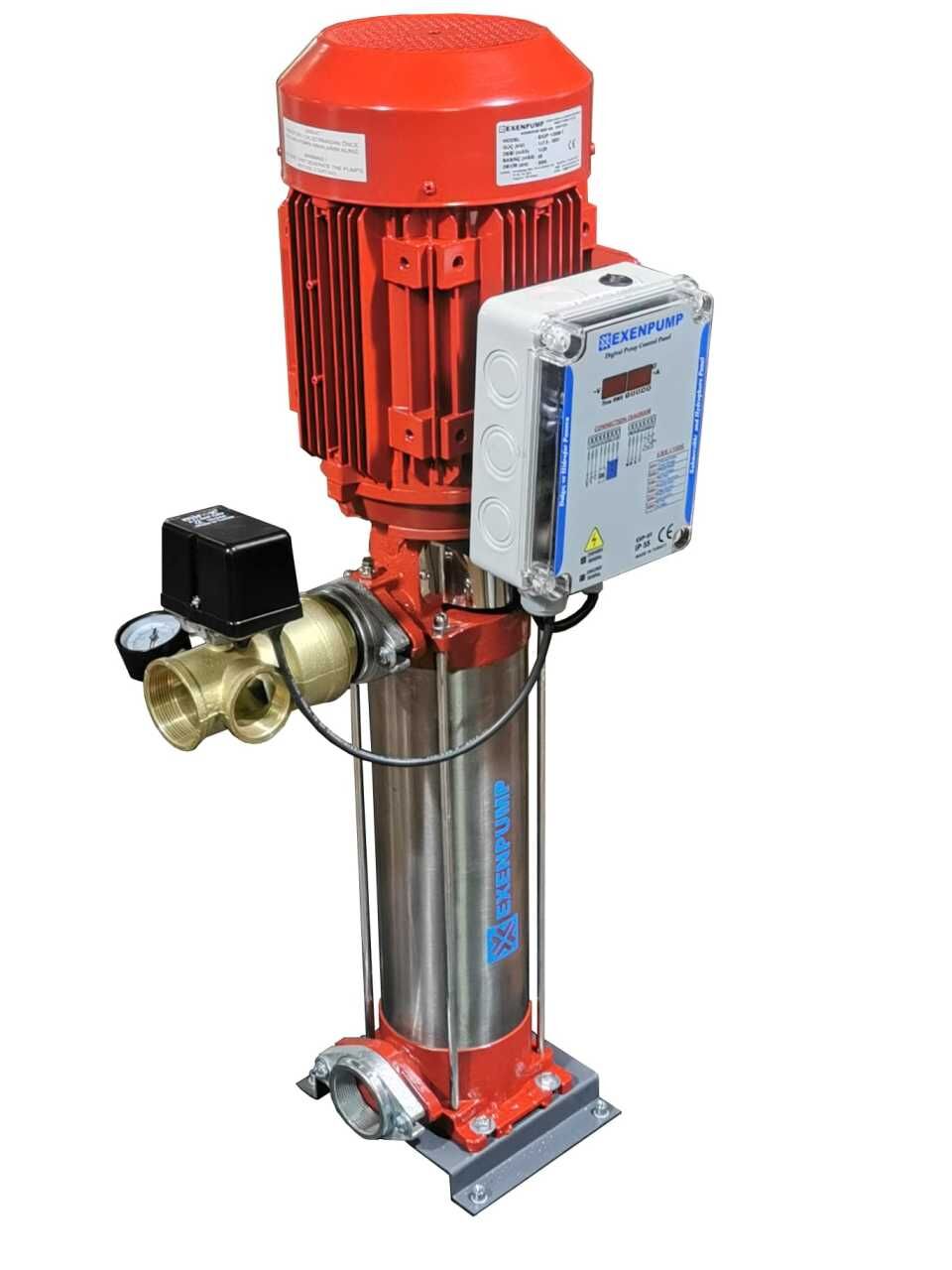

SINGLE PUMP VERTICAL SHAFT FIRE HYDROPHORS EXDP-Y 1500 SERIES |  |
High quality and affordable prices are offered as standard with EXDP-Y Series Noryl Fan Fire Hydrophore Systems. Requiring high pressure water supply; • In high-rise building applications such as apartments etc. • Suitable for use in pressurizing fire installation systems. ( Fully automatic, weekly tested, sound and light alarm)
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Flow 12m³/h | Flow 18m³/h | Flow 24m³/h | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | Pressure mSS | Pressure mSS | Pressure mSS | ||||||
| EXDP-Y 1/1504 | 4 | 3 | 30 | 59 | 50 | 48 | 42 | 2" | 2" | 100/10 |
| EXDP-Y 1/1506 | 5.5 | 4 | 30 | 86 | 68 | 62 | 58 | 2" | 2" | 100/10 |
| EXDP-Y 1/1508 | 7.5 | 5.5 | 30 | 116 | 90 | 80 | 64 | 2" | 2" | 100/16 |
| EXDP-Y 1/1510 | 10 | 7.5 | 30 | 142 | 112 | 100 | 74 | 2" | 2" | 100/16 |
| EXDP-Y 1/1512 | 15 | 11 | 30 | 166 | 132 | 115 | 82 | 2" | 2" | 100/25 |
| SCOPE OF DELIVERY |
* Vertical Shaft Centrifugal Pump
* Single Pump Control Panel
* Manometer
* Pressure Switch
* 5 Way Connector
* Level Floater
* Pump Chassis
* Place Above
