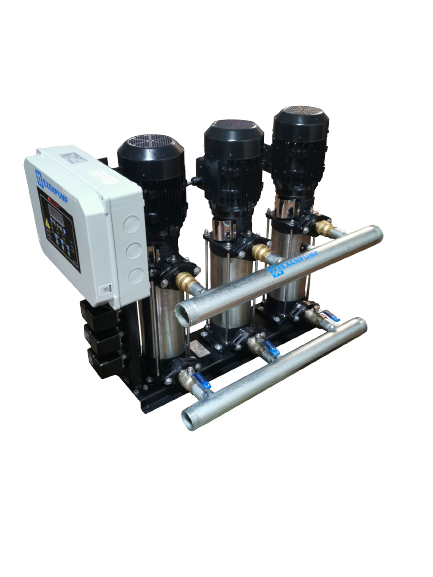

EXDP-K 3/1506 Three Pump Hydrophore (12 Floors-300 Flats)
5.459,08 USD
Brand
Stock code
exdp31506
Manufacturing Period
24 Month
Price
5.459,08 USD
THREE PUMP VERTICAL SHAFT MULTI-STAGE HYDROPHORS EXDP 1500 SERIES |  |
High quality and affordable prices are offered as standard with VDP Series Noryl Fan Hydrophore Systems. Requiring high pressure water supply; • High-rise building applications such as apartments etc. • Suitable for industrial applications such as washing, cleaning processes, garden irrigation etc.
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Floor Number of | Apartment Number of | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | ||||||||
| EXDP 3/1504 | 3x4 | 3x3 | 3x30 | 59 | 8 | 300 | DN100 | DN100 | 750/10 |
| EXDP 3/1506 | 3x5.5 | 3x4 | 3x30 | 86 | 12 | 300 | DN100 | DN100 | 750/10 |
| EXDP 3/1508 | 3x7.5 | 3x5.5 | 3x30 | 116 | 16 | 300 | DN100 | DN100 | 750/16 |
| EXDP 3/1510 | 3x10 | 3x7.5 | 3x30 | 142 | 20 | 300 | DN100 | DN100 | 750/16 |
| EXDP 3/1512 | 3x15 | 3x11 | 3x30 | 166 | 24 | 300 | DN100 | DN100 | 750/25 |
| SCOPE OF DELIVERY |
* 3xVertical Shaft Centrifugal Pump
* Three Pump Control Panel
* Manometer
* 3xPressure Switch
* Level Floater
* Pump Chassis
* Suction - Discharge Collectors
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
* EXDP Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
* Installation Service of the Product is the responsibility of the User.
* In order for the product to be under warranty, the first start-up must be done by EXENPUMP Authorized Services.
* Commissioning is free of charge.
* Products that are not commissioned by an authorized service are out of warranty.
