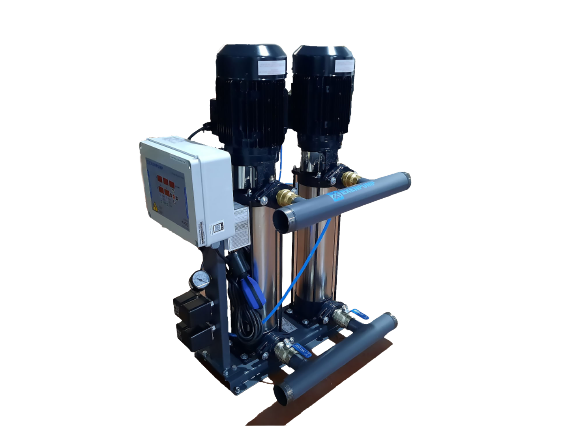

EXDP-K 2/604 Two Pump Hydrophore (6 Floors-60 Flats)
2.010,82 USD
Category
Brand
Stock code
exdp2604
Manufacturing Period
24 Month
Price
2.010,82 USD
VERTICAL SHAFT MULTI-STAGE HYDROPHORS WITH TWO PUMPS EXDP 600 SERIES |  |
High quality and affordable prices are offered as standard with VDP Series Noryl Fan Hydrophore Systems. Requiring high pressure water supply; • High-rise building applications such as apartments etc. • Suitable for industrial applications such as washing, cleaning processes, garden irrigation etc.
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Floor Number of | Apartment Number of | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | ||||||||
| EXDP 2/604 | 2x2 | 2x1.5 | 2x13 | 48 | 6 | 60 | 2" | 2" | 200/10 |
| EXDP 2/606 | 2x2 | 2x1.5 | 2x13 | 70 | 12 | 60 | 2" | 2" | 200/10 |
| EXDP 2/608 | 2x3 | 2x2,2 | 2x13 | 92 | 18 | 60 | 2" | 2" | 200/10 |
| EXDP 2/610 | 2x4 | 2x3 | 2x13 | 118 | 22 | 60 | 2" | 2" | 200/16 |
| EXDP 2/612 | 2x5.5 | 2x4 | 2x13 | 142 | 28 | 60 | 2" | 2" | 200/16 |
| SCOPE OF DELIVERY |
* 2xVertical Shaft Centrifugal Pump
* Two Pump Control Panels
* Manometer
* 2xPressure Switch
* Level Floater
* Pump Chassis
* Suction - Discharge Collectors
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
* EXDP Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
* Installation Service of the Product is the responsibility of the User.
* In order for the product to be under warranty, the first start-up must be done by EXENPUMP Authorized Services.
* Commissioning is free of charge.
* Products that are not commissioned by an authorized service are out of warranty.
