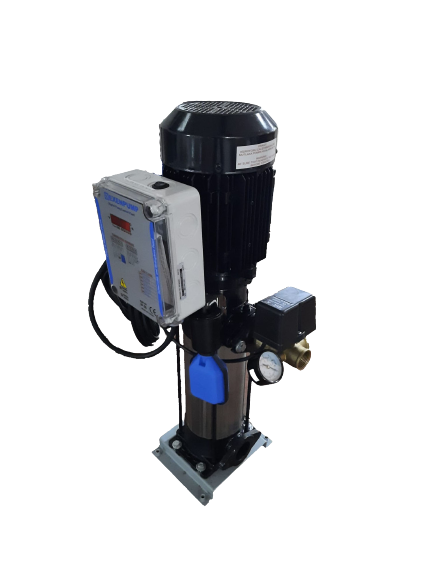

EXDP-K 1/204 Single Pump Hydrophore (4 Floors-10 Flats)
933,71 USD
Brand
Stock code
exdp1204
Manufacturing Period
24 Month
Price
933,71 USD
SINGLE PUMP VERTICAL SHAFT MULTI STAGE HYDROPHORS EXDP 200 SERIES |  |
High quality and affordable prices are offered as standard with the EXDP Series Noryl Fan Hydrophore Systems. Requiring high pressure water supply; • High-rise building applications such as apartments etc. • Suitable for industrial applications such as washing, cleaning processes, garden irrigation etc.
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Floor Number of | Apartment Number of | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | ||||||||
| EXDP 1/204 | 1 | 0.75 | 5 | 40 | 4 | 10 | 11/4" | 1" | 100/10 |
| EXDP 1/206 | 1 | 0.75 | 5 | 60 | 8 | 10 | 11/4" | 1" | 100/10 |
| EXDP 1/208 | 1.5 | 1.1 | 5 | 85 | 12 | 10 | 11/4" | 1" | 100/10 |
| EXDP 1/210 | 2 | 1.5 | 5 | 105 | 15 | 10 | 11/4" | 1" | 100/16 |
| EXDP 1/212 | 2 | 1.5 | 5 | 125 | 18 | 10 | 11/4" | 1" | 100/16 |
| SCOPE OF DELIVERY |
* Vertical Shaft Centrifugal Pump
* Single Pump Control Panel
* Manometer
* Pressure Switch
* 5 Way Connector
* Level Floater
* Pump Chassis
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
* EXDP Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
* Installation Service of the Product is the responsibility of the User.
* In order for the product to be under warranty, the first start-up must be done by EXENPUMP Authorized Services.
* Commissioning is free of charge.
* Products that are not commissioned by an authorized service are out of warranty.
