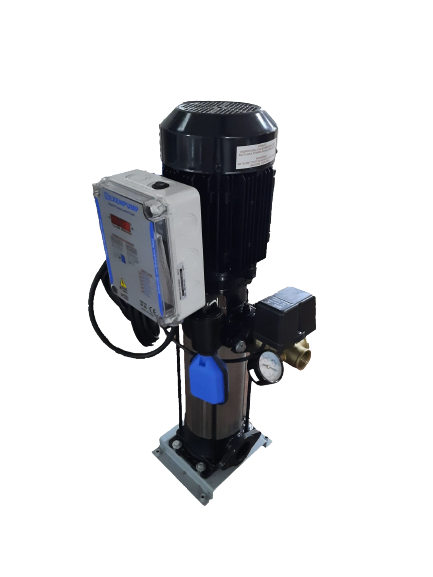

EXDP-K 1/1504 Single Pump Hydrophore (8 Floors-100 Flats)
1.554,67 USD
Brand
Stock code
exdp11504
Manufacturing Period
24 Month
Price
1.554,67 USD
SINGLE PUMP VERTICAL SHAFT MULTI STAGE HYDROPHORS EXDP 1500 SERIES |  |
High quality and affordable prices are offered as standard with the EXDP Series Noryl Fan Hydrophore Systems. Requiring high pressure water supply; • High-rise building applications such as apartments etc. • Suitable for industrial applications such as washing, cleaning processes, garden irrigation etc.
|  |
| GENERAL FEATURES |
|
| TECHNICAL SPECIFICATIONS |
| Model | Strength | Max. Flow m³/h | Max. Pressure mSS | Floor Number of | Apartment Number of | Suction Line | Print Line | Recommendation Tank Obtained The volume (L/Bar) | |
| HP | kW | ||||||||
| EXDP 1/1504 | 4 | 3 | 30 | 59 | 8 | 100 | 2" | 2" | 300/10 |
| EXDP 1/1506 | 5.5 | 4 | 30 | 86 | 12 | 100 | 2" | 2" | 300/10 |
| EXDP 1/1508 | 7.5 | 5.5 | 30 | 116 | 16 | 100 | 2" | 2" | 300/16 |
| EXDP 1/1510 | 10 | 7.5 | 30 | 142 | 20 | 100 | 2" | 2" | 300/16 |
| EXDP 1/1512 | 15 | 11 | 30 | 166 | 24 | 100 | 2" | 2" | 300/25 |
| SCOPE OF DELIVERY |
* Vertical Shaft Centrifugal Pump
* Single Pump Control Panel
* Manometer
* Pressure Switch
* 5 Way Connector
* Level Floater
* Pump Chassis
* The products listed above are delivered as a set, not individually.
| THINGS TO CONSIDER |
* EXDP Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
* Installation Service of the Product is the responsibility of the User.
* In order for the product to be under warranty, the first start-up must be done by EXENPUMP Authorized Services.
* Commissioning is free of charge.
* Products that are not commissioned by an authorized service are out of warranty.
