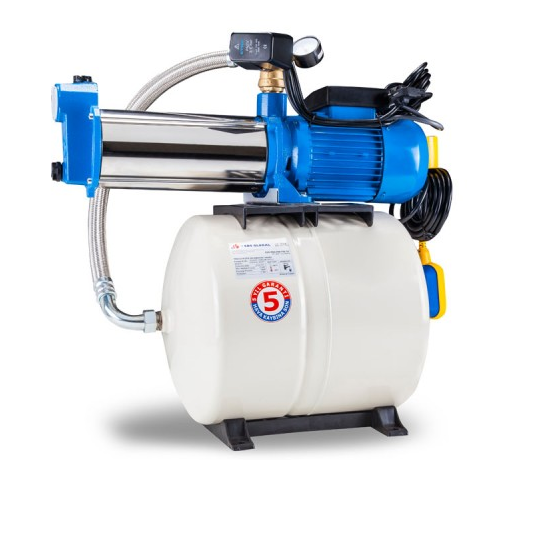

ETNA YPH 90-50ES (12 Floors-24 Flats) 50lt. Hydrophore with Explosion Proof Tank
540,46 USD
Category
Brand
Stock code
yph9050es
Manufacturing Period
24 Month
Price
540,46 USD
PACKAGE HYDROPHORS WITH CENTRIFUGAL PUMP AND EXPLOSIVE TANK ( YPH-ES SERIES ) |  |
It is a horizontal multi-stage, silent operating package hydrophore system. Pressurized water supply and garden irrigation in residences, workplaces, etc. is used for various purposes. |  |
| PUMP FEATURES |
| BODY | STAINLESS STEEL |
| FAN | NORYL |
| SHAFT | STAINLESS STEEL |
| PACKING | MECHANICAL |
| TECHNICAL SPECIFICATIONS |
| MODEL | VOLTAGE | STRENGTH HP | ENTRANCE DIAMETER | EXIT DIAMETER |
| ETNA YPH 60-50 ES | 220 | 1.5 | 11/4" | 1" |
| ETNA YPH 90-50 ES | 220 | 2.25 | 11/4" | 1" |
| PERFORMANCE VALUES |
| MODEL | Q (m³/h) | H (mSS) | TANK VOLUME (lt) | FLOOR | APARTMENT |
| ETNA YPH 60-50 ES | 3.6 | 47 | 50 | 8 | 16 |
| ETNA YPH 90-50 ES | 4.8 | 51 | 50 | 12 | 24 |
| SCOPE OF DELIVERY |
• 24 lt or 50 lt replaceable membrane tank (horizontal)
• 5 way connector
• Non-return valve
• 5 m level float
• Pressure Switch, Manometer and connection flex
*In order for the product to be under warranty, the first start-up must be done by ETNA authorized services.
