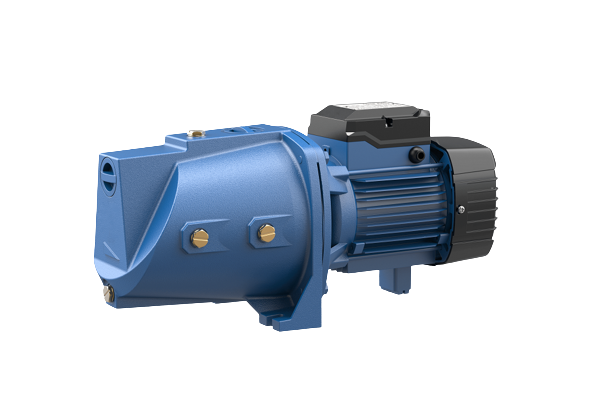

ETN JET 200 - Self Priming Cast Iron Body Jet Pump
SELF-PRIMING CAST IRON BODY JET PUMPS ( ETN JET SERIES ) |  |
ETN JET Series Pumps They are self-priming (injector) pumps with cast iron body and brass impeller. It is used especially to take water from wells and deep tanks, suction The pump continues to operate normally even if there is a water-air mixture in the pipe. It is used in residential hydrophore systems and garden irrigation. It can suction from a depth of up to 8 meters. |  |
| MATERIAL PROPERTIES |
| Body | Casting |
| Fan | Rice |
| Shaft | Stainless steel |
| Packing | Mechanical |
| TECHNICAL SPECIFICATIONS |
| MODEL | Voltage V | STRENGTH HP | CONNECTION | m³/h | 0 | 0.9 | 1.2 | 1.5 | 2.4 | 3 | 3.6 | 4 | - | ||
| HP | kW | Entrance | Exit | l/min | 0 | 15 | 20 | 25 | 40 | 50 | 60 | 67 | - | ||
| ETN JET 100 | 220 | 1 | 0.75 | 1" | 1" | Hmm (mSS) | 46 | 41 | 39 | 38 | 32 | 28 | 18 | 14 | - |
| ETN JET 150 | 220 | 1.5 | 1.1 | 1" | 1" | 52 | 46 | 44 | 42 | 36 | 32 | 23 | 18 | - | |
• There is no requirement for centrifugal pumps to be started by an authorized service.
• If requested, this service is provided additionally for a fee.
