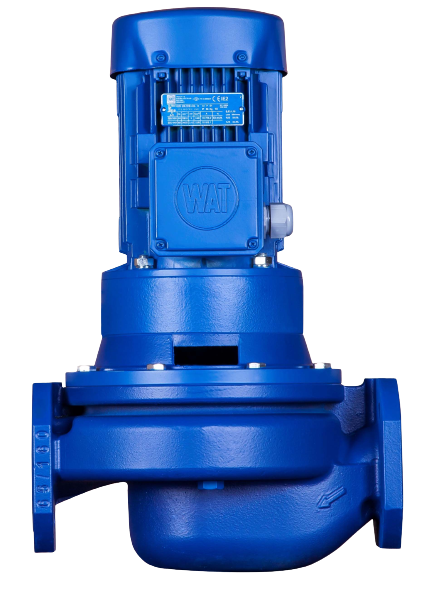

EILR4 40-125/0.37 - 1500rpm - IN-LINE DRY ROTOR CIRCULATION PUMP
432,89 USD
Category
Brand
Stock code
eilr440125037
Manufacturing Period
24 Month
Price
432,89 USD
IN-LINE DRY ROTOR THREE-PHASE CIRCULATION PUMPS EILR4 (1500 rpm) |  |
 | EILR Series In-line Dry Rotor Circulation Pumps Keep comfort and energy efficiency at the highest level with • Can be directly connected to the installation with in-line (input - output on the same line) connection • Pumps used in hot or cold water circulation cycles in domestic and industrial heating, cooling, air conditioning and sanitary installations. |
| STRUCTURAL FEATURES |
| Pump Body | : GG25 Cast Iron |
| Pump Shaft | : AISI420 Stainless Steel |
| Wheel | : GG25 Cast Iron |
| Adapter | : GG25 Cast Iron |
| Mechanical Seal | : Carbon / Silicon Carbide / EPDM |
| Packing Body | : GG25 Cast Iron |
| Elastomers | : EPDM |
| FLUID PROPERTIES |
• Clean, solid abrasive particle free, non-viscous and non-hard, chemical neutral water
• The maximum glycol ratio that can be added to the circulation water is 30%.
| PERFORMANCE VALUES |
| MODEL | NOMINAL CAPACITY | STRENGTH | TURNOVER RATE | CONNECTION | BETWEEN TWO FLANGES | SOUND | |||
| m³/h | mSS | kW | HP | rpm | ENTRANCE | EXIT | mm | db | |
| EILR4 40-125/0.25 | 8 | 5 | 0.25 | 0.34 | 1450 | DN40 | DN40 | 300 | 45 |
| EILR4 40-125/0.37 | 8 | 6 | 0.37 | 0.5 | 1450 | DN40 | DN40 | 300 | 46 |
| EILR4 40-125/0.55 | 8 | 7 | 0.55 | 0.75 | 1450 | DN40 | DN40 | 300 | 47 |
| PRODUCT CATALOGUE |
YOU CAN REACH THE PRODUCT CATALOGUE BY CLICKING THE PICTURE BELOW.
