EILR4 100-250/5.5 - 1500rpm - IN-LINE DRY ROTOR CIRCULATION PUMP
1.497,18 USD
Category
Brand
Stock code
eilr410025055
Manufacturing Period
24 Month
Price
1.497,18 USD

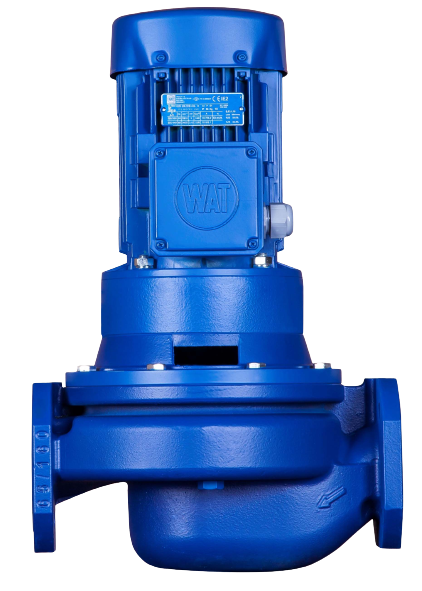

IN-LINE DRY ROTOR THREE-PHASE CIRCULATION PUMPS EILR4 (1500 rpm) |  |
 | EILR Series In-line Dry Rotor Circulation Pumps Keep comfort and energy efficiency at the highest level with • Can be directly connected to the installation with in-line (input - output on the same line) connection • Pumps used in hot or cold water circulation cycles in domestic and industrial heating, cooling, air conditioning and sanitary installations. |
| STRUCTURAL FEATURES |
| Pump Body | : GG25 Cast Iron |
| Pump Shaft | : AISI420 Stainless Steel |
| Wheel | : GG25 Cast Iron |
| Adapter | : GG25 Cast Iron |
| Mechanical Seal | : Carbon / Silicon Carbide / EPDM |
| Packing Body | : GG25 Cast Iron |
| Elastomers | : EPDM |
| FLUID PROPERTIES |
• Clean, solid abrasive particle free, non-viscous and non-hard, chemical neutral water
• The maximum glycol ratio that can be added to the circulation water is 30%.
| PERFORMANCE VALUES |
| MODEL | NOMINAL CAPACITY | STRENGTH | TURNOVER RATE | CONNECTION | BETWEEN TWO FLANGES | SOUND | |||
| m³/h | mSS | kW | HP | rpm | ENTRANCE | EXIT | mm | db | |
| EILR4 100-250/3 | 70 | 10 | 3 | 4 | 1450 | DN100 | DN100 | 600 | 52 |
| EILR4 100-250/4 | 75 | 11 | 4 | 5.5 | 1450 | DN100 | DN100 | 600 | 53 |
| EILR4 100-250/5.5 | 80 | 14 | 5.5 | 7.5 | 1450 | DN100 | DN100 | 600 | 54 |
| EILR4 100-250/7.5 | 100 | 16 | 7.5 | 10 | 1450 | DN100 | DN100 | 600 | 55 |
| EILR4 100-250/11 | 120 | 18 | 11 | 15 | 1450 | DN100 | DN100 | 600 | 56 |
| PRODUCT CATALOGUE |
YOU CAN REACH THE PRODUCT CATALOGUE BY CLICKING THE PICTURE BELOW.
