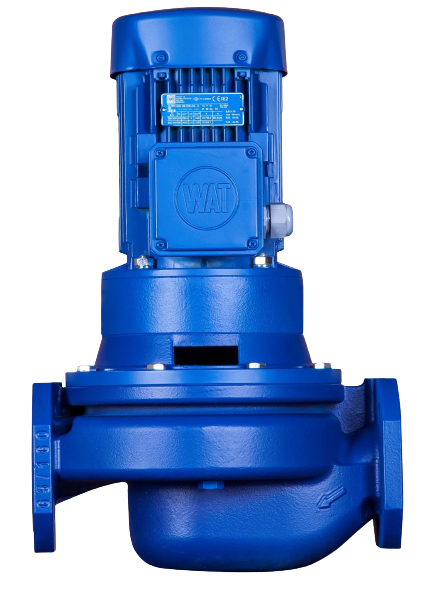

EILR 80-160/11 - 2900rpm - IN-LINE DRY ROTOR CIRCULATION PUMP
1.615,38 USD
Category
Brand
Stock code
eilr8016011
Manufacturing Period
24 Month
Price
1.615,38 USD
IN-LINE DRY ROTOR THREE-PHASE CIRCULATION PUMPS EILR (2900 rpm) |  |
 | EILR Series In-line Dry Rotor Circulation Pumps Keep comfort and energy efficiency at the highest level with • Can be directly connected to the installation with in-line (input - output on the same line) connection • Pumps used in hot or cold water circulation cycles in domestic and industrial heating, cooling, air conditioning and sanitary installations. |
| STRUCTURAL FEATURES |
| Pump Body | : GG25 Cast Iron |
| Pump Shaft | : AISI420 Stainless Steel |
| Wheel | : GG25 Cast Iron |
| Adapter | : GG25 Cast Iron |
| Mechanical Seal | : Carbon / Silicon Carbide / EPDM |
| Packing Body | : GG25 Cast Iron |
| Elastomers | : EPDM |
| FLUID PROPERTIES |
• Clean, solid abrasive particle free, non-viscous and non-hard, chemical neutral water
• The maximum glycol ratio that can be added to the circulation water is 30%.
| PERFORMANCE VALUES |
| MODEL | NOMINAL CAPACITY | STRENGTH | TURNOVER RATE | CONNECTION | BETWEEN TWO FLANGES | SOUND | |||
| m³/h | mSS | kW | HP | rpm | ENTRANCE | EXIT | mm | db | |
| EILR 80-160/4 | 50 | 16 | 4 | 5.5 | 2900 | DN80 | DN80 | 440 | 63 |
| EILR 80-160/5.5 | 60 | 17 | 5.5 | 7.5 | 2900 | DN80 | DN80 | 440 | 66 |
| EILR 80-160/7.5 | 72 | 20 | 7.5 | 11 | 2900 | DN80 | DN80 | 440 | 67 |
| EILR 80-160/11 | 90 | 25 | 11 | 15 | 2900 | DN80 | DN80 | 440 | 68 |
| EILR 80-160/15 | 100 | 27 | 15 | 20 | 2900 | DN80 | DN80 | 440 | 71 |
| PRODUCT CATALOGUE |
YOU CAN REACH THE PRODUCT CATALOGUE BY CLICKING THE PICTURE BELOW.
