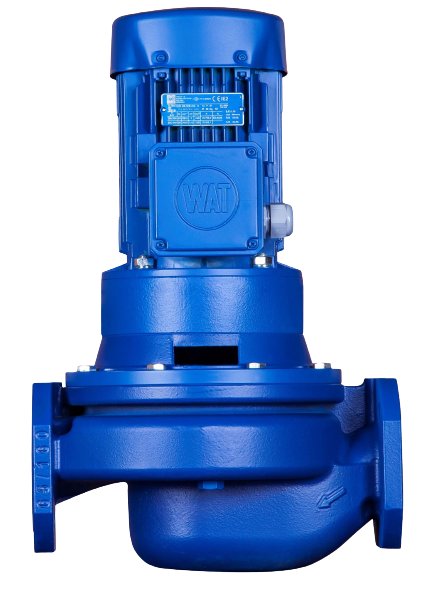

EILR 100-160/18.5 - 2900rpm - IN-LINE DRY ROTOR CIRCULATION PUMP
2.072,63 USD
Category
Brand
Stock code
eilr100160185
Manufacturing Period
24 Month
Price
2.072,63 USD
IN-LINE DRY ROTOR THREE-PHASE CIRCULATION PUMPS EILR (2900 rpm) |  |
 | EILR Series In-line Dry Rotor Circulation Pumps Keep comfort and energy efficiency at the highest level with • Can be directly connected to the installation with in-line (input - output on the same line) connection • Pumps used in hot or cold water circulation cycles in domestic and industrial heating, cooling, air conditioning and sanitary installations. |
| STRUCTURAL FEATURES |
| Pump Body | : GG25 Cast Iron |
| Pump Shaft | : AISI420 Stainless Steel |
| Wheel | : GG25 Cast Iron |
| Adapter | : GG25 Cast Iron |
| Mechanical Seal | : Carbon / Silicon Carbide / EPDM |
| Packing Body | : GG25 Cast Iron |
| Elastomers | : EPDM |
| FLUID PROPERTIES |
• Clean, solid abrasive particle free, non-viscous and non-hard, chemical neutral water
• The maximum glycol ratio that can be added to the circulation water is 30%.
| PERFORMANCE VALUES |
| MODEL | NOMINAL CAPACITY | STRENGTH | TURNOVER RATE | CONNECTION | BETWEEN TWO FLANGES | SOUND | |||
| m³/h | mSS | kW | HP | rpm | ENTRANCE | EXIT | mm | db | |
| EILR 100-160/7.5 | 100 | 18 | 15 | 20 | 2900 | DN100 | DN100 | 500 | 71 |
| EILR 100-160/11 | 120 | 25 | 18.5 | 25 | 2900 | DN100 | DN100 | 500 | 72 |
| EILR 100-160/15 | 130 | 28 | 22 | 30 | 2900 | DN100 | DN100 | 500 | 73 |
| EILR 100-160/18.5 | 145 | 32 | 30 | 40 | 2900 | DN100 | DN100 | 500 | 73 |
| EILR 100-160/22 | 150 | 35 | 37 | 50 | 2900 | DN100 | DN100 | 500 | 74 |
| PRODUCT CATALOGUE |
YOU CAN REACH THE PRODUCT CATALOGUE BY CLICKING THE PICTURE BELOW.
