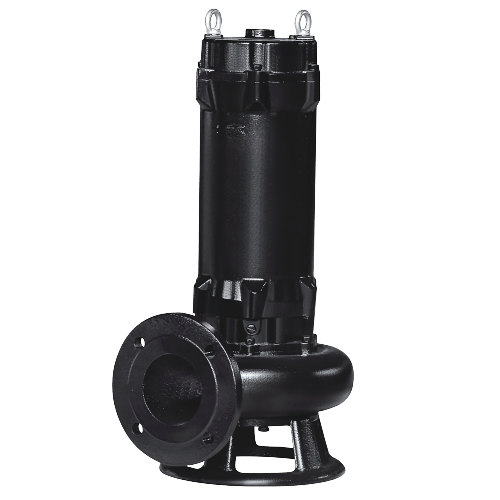

EFP 30DP-2P WASTEWATER PUMP WITH SHUTTER BLADES
853,19 USD
EFP DP-2P SERIES WASTEWATER PUMPS WITH SHREDDER BLADES |  |
EFP DP-2P SERIES WASTEWATER PUMPS WITH SHUTTER BLADES • It is designed to be used in cases where the diameter of suspended solid particles in wastewater is too large for pumps to transfer. It is a suitable pump for transferring fibrous, fiber-containing industrial and textile wastes as well as household and animal wastes in slaughterhouses such as paper towels and tissues by breaking them into small pieces. • It must be used with a suitable protection control panel and a ball type check valve. Note: In three-phase (380V-50Hz) electrically powered drainage pumps, Original ETNA protection control panel must be used. Original three-phase ETNA protection control panel will occur in case of non-use Damages are not covered by warranty |  |
| MATERIAL PROPERTIES |
| Body | GG20 Cast Iron | |
| Fan | GG20 Cast Iron | |
| Shaft | AISI 304 Stainless Steel | |
| PERFORMANCE CHARACTERISTICS |
| MODEL | VOLTAGE | STRENGTH | OUTLET DIAMETER | Q (lt/min) | 0 | 167 | 333 | 500 | 667 | 833 | 1000 | 1167 | 1333 | |
| V | kW | HP | mm | Q (m³/h) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |
| EFP 30DP-2P | 380V-50Hz | 3 | 4 | DN65 | Hmm (mSS) | 18 | 17 | 14.5 | 12 | 8.5 | 4 | - | - | - |
| EFP 40DP-2P | 380V-50Hz | 4 | 5.5 | DN65 | 24 | 23 | 22 | 20 | 17 | 14 | 11 | 8 | 4 | |
| EFP 55DP-2P | 380V-50Hz | 5.5 | 7.5 | DN80 | 26 | 25 | 23.5 | 21 | 19 | 16 | 14 | 11 | 8 | |
