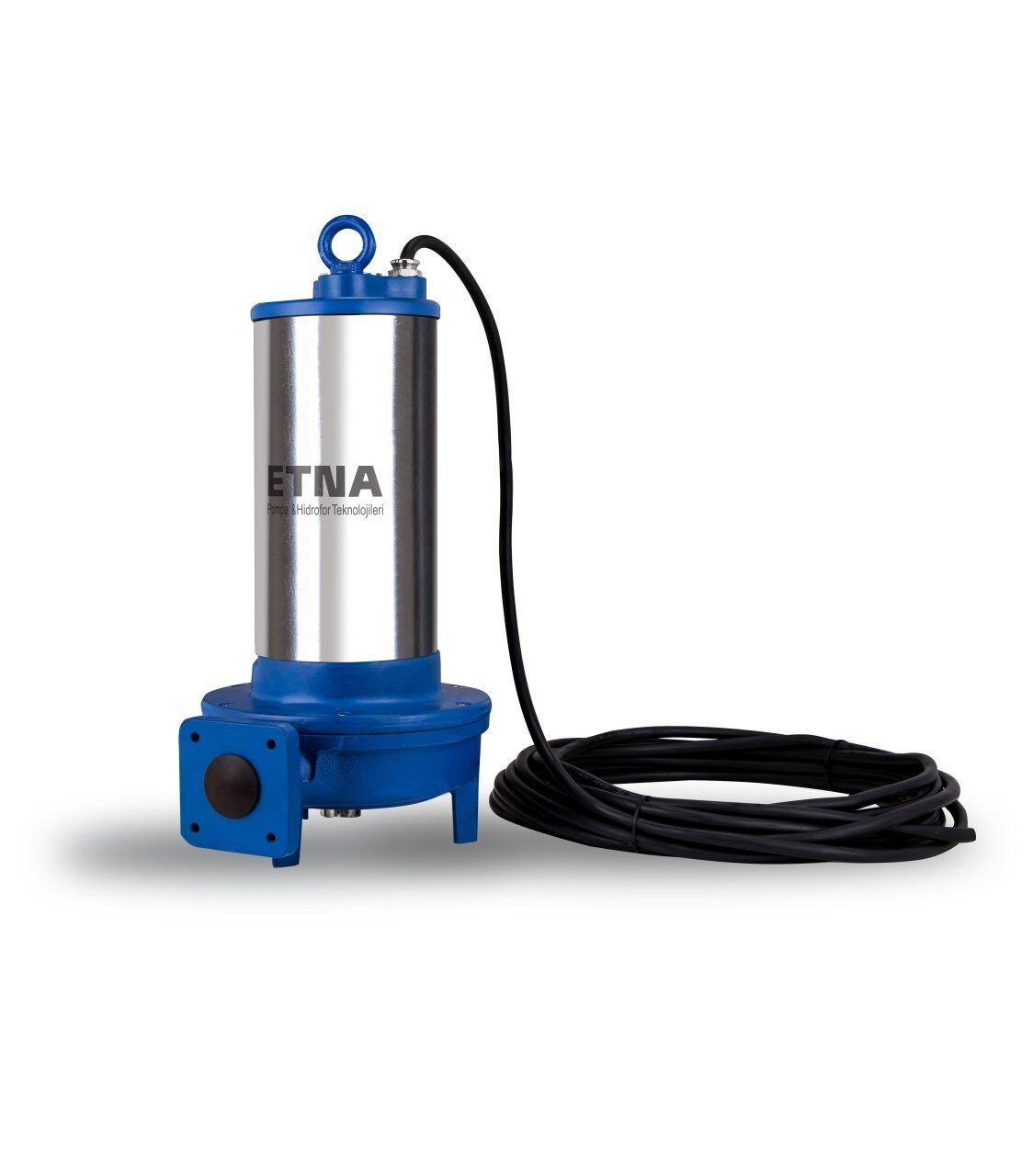

EFP 22DP Shredder Blade Grinder Wastewater Submersible Pump
824,76 USD
Category
Brand
Stock code
efp22dp
Manufacturing Period
24 Month
Price
824,76 USD
Sewage PUMP WITH SHREDDER BLADE (EFP SERIES) |  |
Containing solid particles (paper, textiles) parts, waste with plastic additives etc.) waste and septic tank designed for the transfer of water, crusher solid particles thanks to the blade system discharging smoothly by breaking down are pumps. |  |
| STRUCTURAL FEATURES |
| BODY | CASTING |
| FAN | CASTING |
| SHAFT | STAINLESS STEEL |
| ENGINE BODY | STAINLESS STEEL |
| SHREDDER KNIFE | CAST STEEL (STAINLESS STEEL) |
| TECHNICAL SPECIFICATIONS |
| MODEL | VOLTAGE V | STRENGTH kW | EXIT DIAMETER |
| EFP 22DP | 380 | 2.2 | 2" |
| HYDRAULIC VALUES |
MODEL | Flow m³/h | 0 | 3 | 6 | 9 | 18 |
| EFP 22DP | Pressure mSS | 24.5 | 23.0 | 21.6 | 19.8 | 8.0 |
* Original protection - control panel must be used with drain pumps. Damages that occur if the original panel is not used are not covered by the warranty.
* In order for the product to be under warranty, the first start-up must be done by ETNA authorized services.
