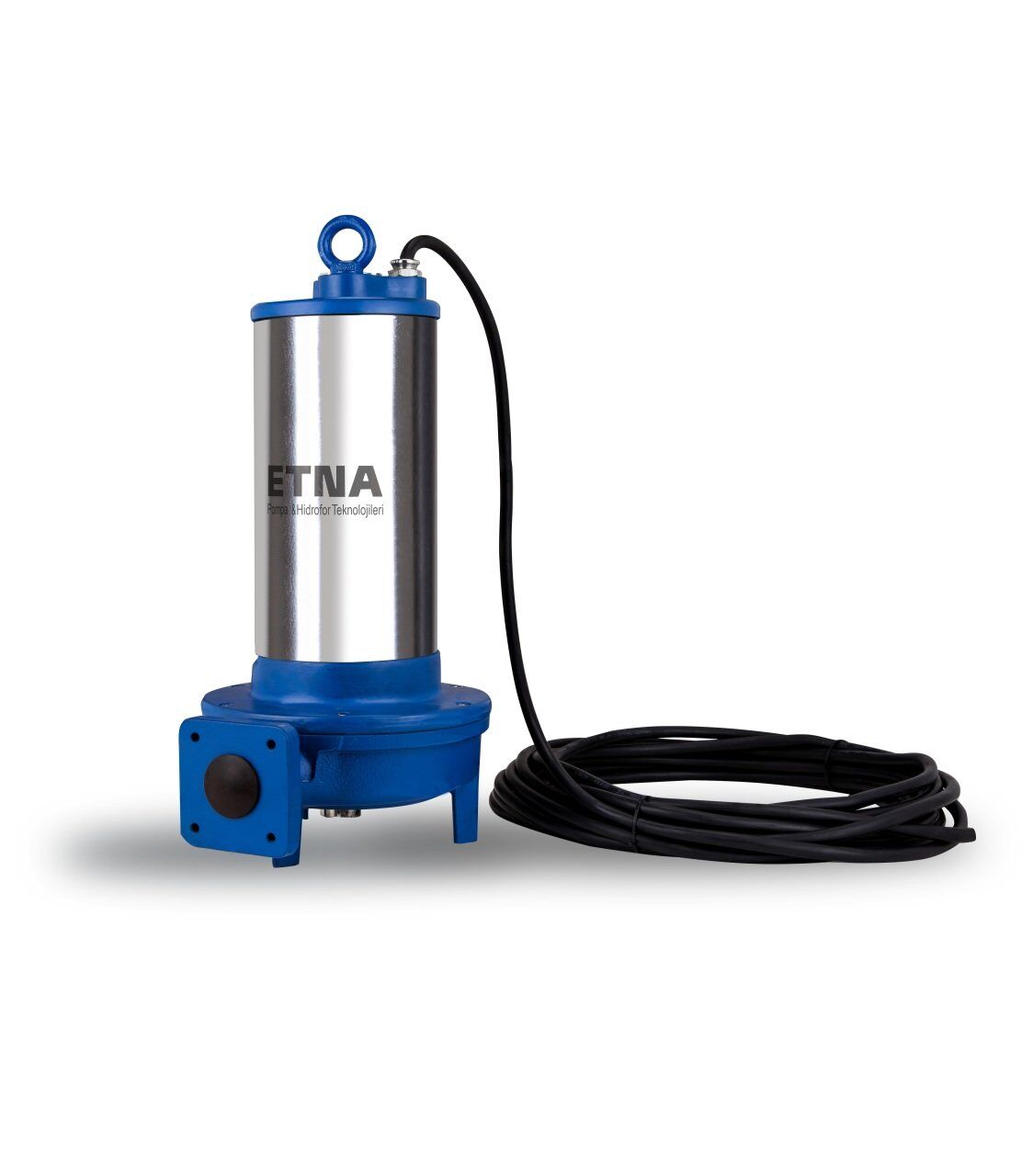

EFP 22D Septic and Submersible Drainage Pumps
784,45 USD
Category
Brand
Stock code
efp22d
Manufacturing Period
24 Month
Price
784,45 USD
SEPTIC AND DRAINAGE PUMP (EFP SERIES) |  |
Particles up to 6 mm in size used for discharging less polluted water Open impeller, stainless steel, ideal for are filtered pumps. |  |
| STRUCTURAL FEATURES |
| BODY | CASTING |
| FAN | CASTING |
| SHAFT | STAINLESS STEEL |
| ENGINE BODY | STAINLESS STEEL |
| TECHNICAL SPECIFICATIONS |
| MODEL | VOLTAGE V | STRENGTH kW | EXIT DIAMETER |
| EFP 22D | 380 | 2.2 | 2" |
| HYDRAULIC VALUES |
MODEL | Flow m³/h | 0 | 3 | 6 | 9 | 18 |
| EFP 30D | Pressure mSS | 24.5 | 23.0 | 21.6 | 19.8 | 8 |
* Original protection - control panel must be used with drain pumps. Damages that occur if the original panel is not used are not covered by the warranty.
* In order for the product to be under warranty, the first start-up must be done by ETNA authorized services.
