EFP 11DV - Single Phase Waste Water Drainage Pump
637,53 USD
Category
Brand
Stock code
efp11dv
Manufacturing Period
24 Month
Price
531,28 USD + VAT

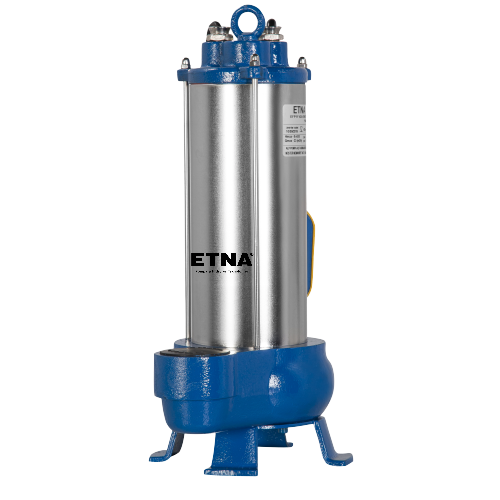

SINGLE PHASE VORTEX IMPELLER WASTEWATER PUMP (EFP 11DV SERIES) |  |
Particles up to 35 mm in size It is ideal for discharging polluted waters and is dense designed for use with vortex impeller are pumps. | .png) |
| MATERIAL PROPERTIES |
| BODY | : GG25 CASTING |
| FAN | : GG25 CASTING |
| SHAFT | : AISI 420 STAINLESS STEEL |
| PERFORMANCE CHART |
| MODEL | Voltage V | Strength kW | Outlet Diameter inch | m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 |
| l/min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | ||||
| EFP 11DP | 230 | 1.1 | 11/2" | Hmm (mSS) | 20.4 | 18.3 | 16.3 | 14.3 | 10.2 | 2 | - | - |
| EFP 11D | 230 | 1.1 | 11/2" | 20.4 | 19 | 17.8 | 15 | 11.3 | 5.1 | - | - | |
| EFP 11DV | 230 | 1.1 | 2" | 9 | 7.3 | 6.3 | 5.3 | 4.2 | 3.1 | 2 | 0.8 |
| DIMENSIONS |
E: Maximum Discharge Level
Mf : Minimum Level Required for Continuous Operation
| MODEL | Pump Dimensions | Packaging Dimensions | Weight | |||||||||
| B | C | Mf | D | TO | H2 | mf | DNM | K | L | M | kg | |
| EFP 11DP | 122 | 420 | 395 | 205 | 80 | 58 | 300 | 11/2" | 460 | 300 | 300 | 19.5 |
| EFP 11D | 122 | 425 | 400 | 205 | 80 | 58 | 300 | 11/2" | 460 | 300 | 300 | 19 |
| EFP 11DV | 109 | 425 | 452 | 240 | 100 | 117 | 300 | 2" | 460 | 300 | 300 | 19 |
* In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services. The first start-up is free of charge.
