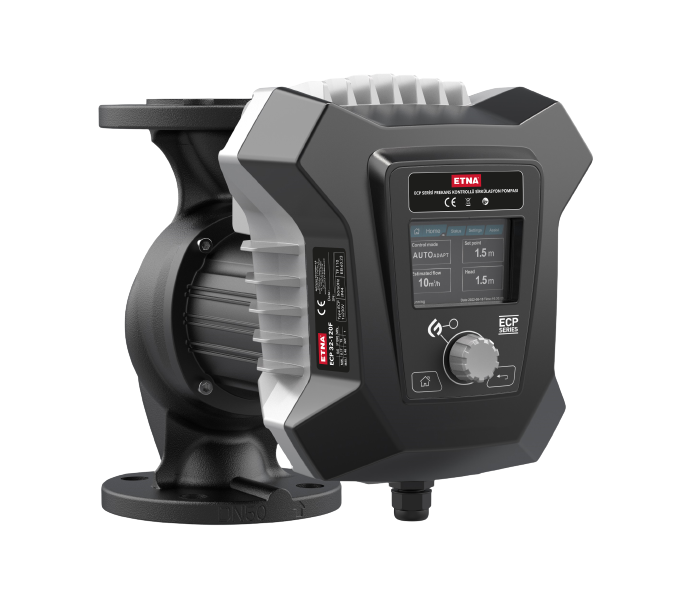

ECP 80-120 F - CIRCULATION PUMP WITH FREQUENCY CONVERTER
2.367,61 USD
Brand
Stock code
ecp80120f
Manufacturing Period
24 Month
Price
2.367,61 USD
WET ROTOR FREQUENCY CONVERTER CIRCULATION PUMPS (ECP-F SERIES) |  |
|
| DESIGN FEATURES AND ADVANTAGES |
ECP-F series wet rotor frequency controlled circulation pumps are in compliance with the European Union ecodesign (ErP) 2009/125/EC) directive and offer comfort and energy efficiency together. With the frequency control driver integrated into the product, LP-V (differential pressure variable) and LP-C (differential pressure fixed) operating modes, flow & pressure variability or constant pressure suitable for system demand is provided.
ECP-F series circulation pumps; It also has the options of compatibility with the building automation system (MODBUS), night mode and fixed speed operation, and minimizes electricity costs with the advantage of variable flow-pressure, provides silent operation and long service life.
| STRUCTURAL FEATURES |
| COMPONENT NO | COMPONENT NAME | STRUCTURAL FEATURE |
| 1 | Pump Body | Cast iron surface electrophoresis treatment, exterior paint treatment |
| 2 | Wheel | Hydraulic model is equipped with PES engineered plastic impeller |
| 3 | Stainless Steel Cover | Stainless steel material |
| 4 | Protective Sleeve | Stainless steel material, inner wall mirror finish |
| 5 | Hive | Aluminum alloy barrel, the surface is treated with black electrophoresis. |
| 6 | Body | Plastic spray treatment on the outside |
| 7 | Stator | Full copper wire |
| 8 | Driver | Electronic device |
| 9 | Control Panel | Electronic device |
| 10 | Insulation Shield | Black plastic |
| 11 | Lid | High strength plastic, texture treatment on the surface, Secondary vulcanization process on insulation material, beautiful and stylish appearance |
| 12 | Roller | Brown ceramic |
| 13 | Rotor | Stainless steel shaft + tungsten carbide spray treatment |
| 14 | Foam | Black EPP material with heat preservation and safety protection features. |
| PERFORMANCE CURVE |
| PRODUCT BROCHURES |
| COMMERCIAL BROCHURE | TECHNICAL BROCHURE |
 |  |
| MOD-BUS LIST | USER MANUAL |
 |  |
