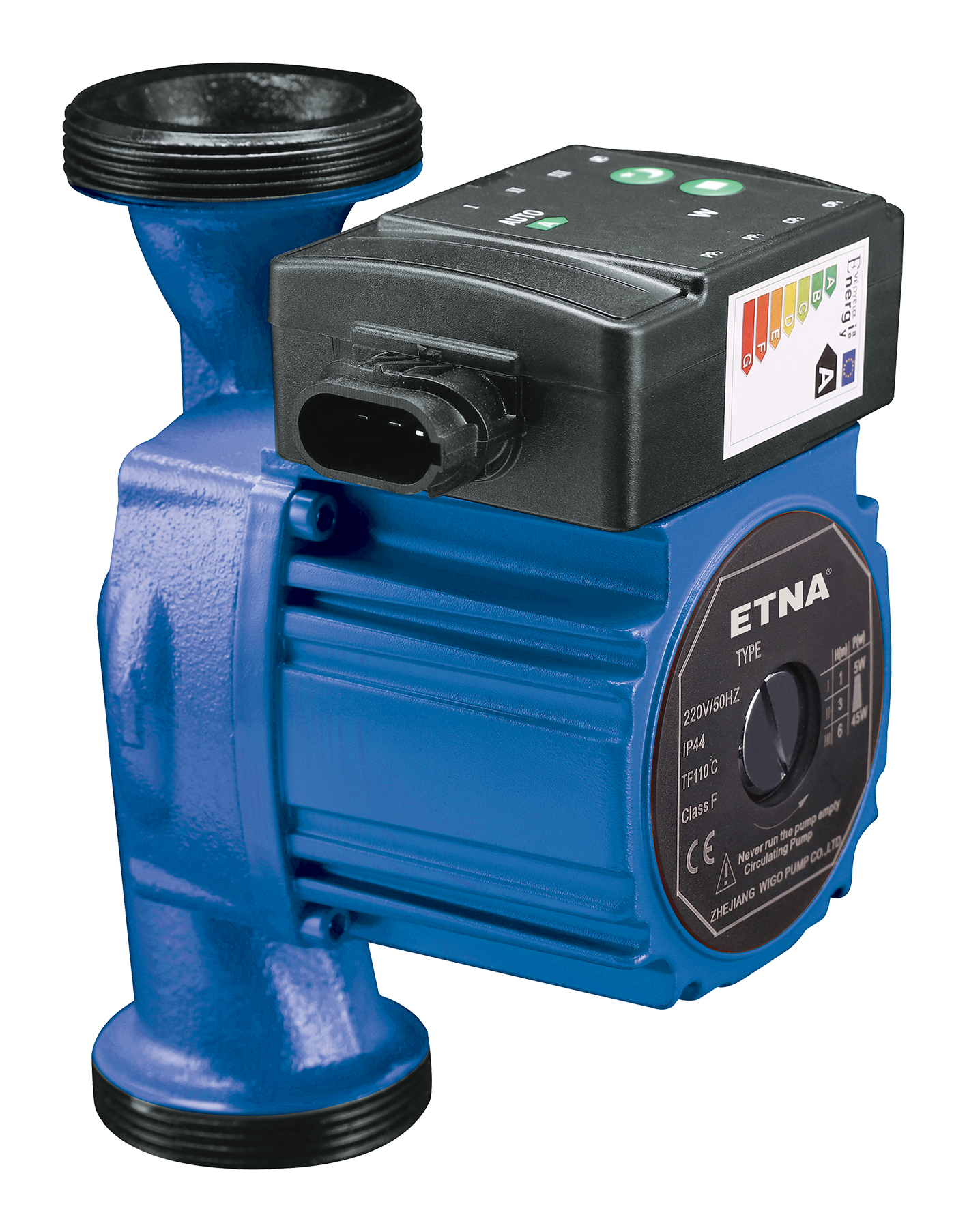

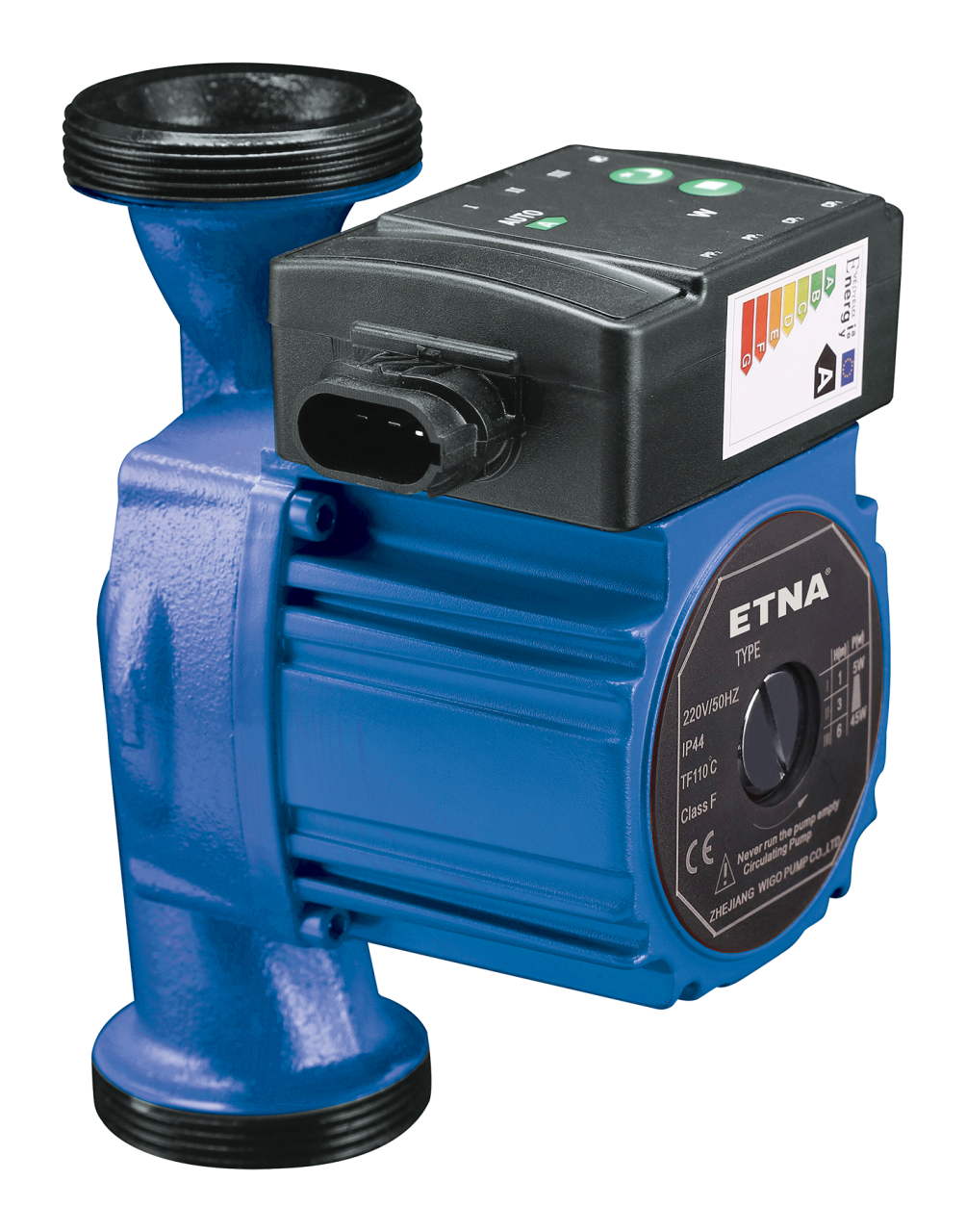

ECP 25-6-180 Frequency Controlled Circulation Pump
187,12 USD
Brand
Stock code
ecp256180
Manufacturing Period
24 Month
Price
187,12 USD
-weight: bold; font-size: 14pt;">WET ROTOR FREQUENCY CONTROLLED CIRCULATION PUMPS
ECP SERIES
 | ecodesign-ErP Directive 2009/125/EC compliant. Low energy (frequency controlled) circulation pumps, It is produced for the circulation of hot water in heating systems. • Easy installation and commissioning: With factory settings, The pump usually does not require any additional adjustment. • High comfort: Low installation operating noise. • Low energy consumption: Compared to traditional 3-speed circulators lower energy consumption. Note: 11/2" - 1” Union Set is included in the price. |  |
| PERFORMANCE CURVE |
| TECHNICAL DETAILS |
| MODEL | Qmax (m³/h) | Hmax (mSS) | Length (mm) | Union Diameter (inch) | Pipe Diameter (inch) | Equivalent Model (Frequency Control) | Equivalent Model (3 Speed) |
| ECP 25-6-130 | 3 | 6 | 130 | 11/2" | 1" | Evosta 40-70/130 | VA65/130 |
| ECP 25-6-180 | 3.5 | 6 | 180 | 11/2" | 1" | Yonos Pico 25/1-6 | RS25/6-180 |
