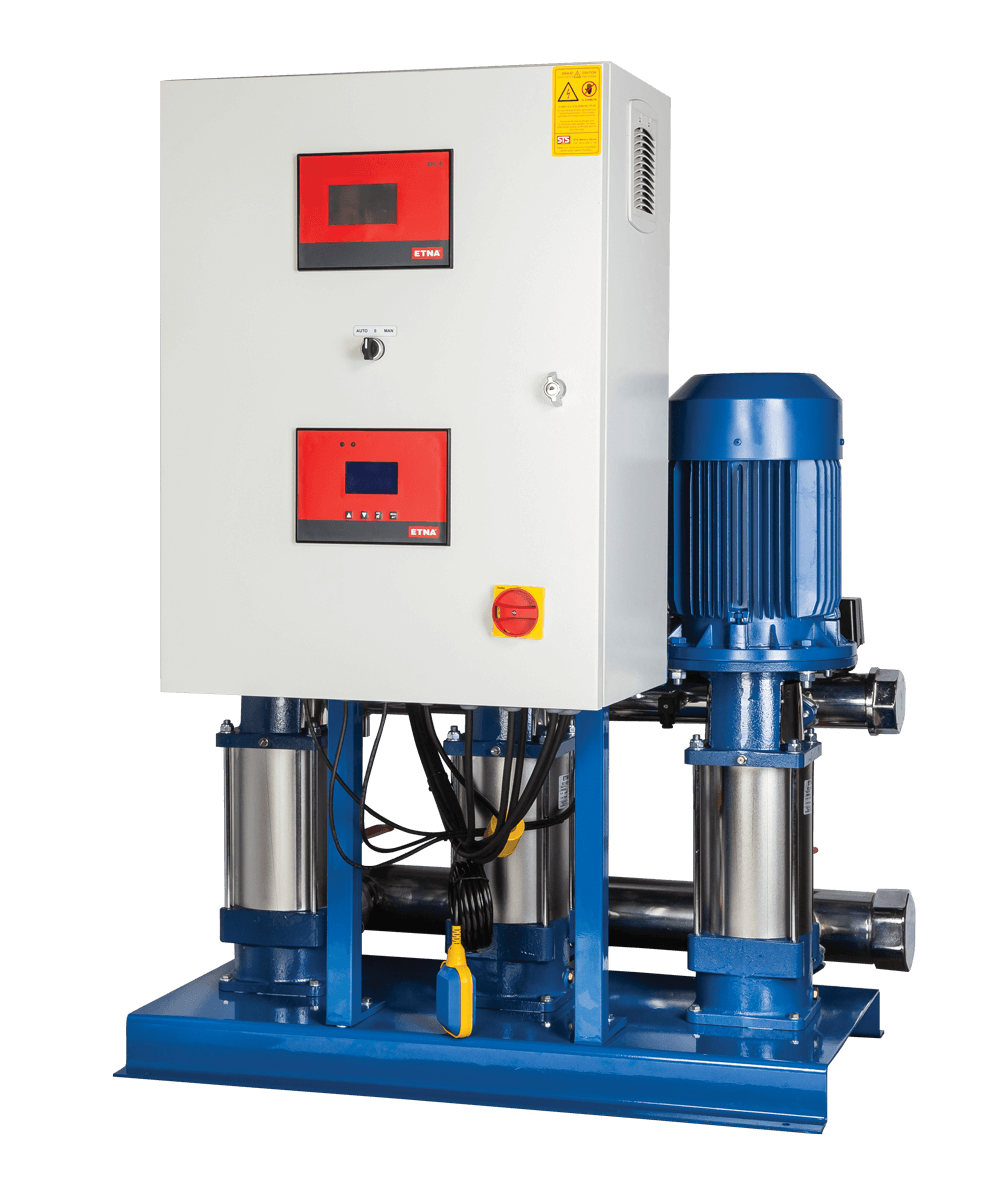

3 PFK KO 35/8-150 Three Pump Frequency Converter Hydrophore
11.137,11 USD
Brand
Stock code
3pfkko358150
Manufacturing Period
24 Month
Price
11.137,11 USD
3 PUMP FREQUENCY CONVERTER HYDROPHORS (3 PFK KO 35 SERIES) |  |
ETNA 3 PFK KO SERIES - 3 PUMP HYDROPHORS Buildings such as residences, hospitals, schools, shopping malls that require high pressure and flow, These are energy-saving products used in industrial processes. |  |
| GENERAL FEATURES |
• Epoxy painted DKP control panel • Optimum efficiency with PID control thanks to specially designed 4.3'' touch screen PLC. • Ability to control multiple pumps with a single frequency inverter • Equi-aging sequential operation feature • Intervention by cutting off the power with a locked paco switch • Low current protection against dry operation • 2nd protection preventing operation without water (5 m level float) • 3rd protection against dry operation low pressure protection • Adjustable low and high current protection • Phase sequence and phase loss protection • Pressure transmitter in automatic mode, pressure switch-dependent operation in manual mode • Suction and discharge collector, manometer and pressure switch • Spring type silent stainless steel check valve • Steel chassis with rubber pads to prevent vibration and oven-painted paint • Operating data is transferred to BMS separately via Modbus RS 485 and dry contacts |
| TECHNICAL SPECIFICATIONS |
(IT IS SINGLE PUMP FLOW RATE)
| MODEL | STRENGTH | RATED CURRENT A | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 3x25 | 3x30 | 3x35 | ||||
| 3 PFK KO 35/3-55 | 3x7.5 | 3x5.5 | 3x14.1 | 50 | 40 | 33 | 750lt | PN10 |
| 3 PFK KO 35/4-75 | 3x10 | 3x7.5 | 3x18.5 | 64 | 55 | 40 | 750lt | PN10 |
| 3 PFK KO 35/5-110 | 3x15 | 3x11 | 3x19.5 | 80 | 67 | 50 | 750lt | PN10 |
| 3 PFK KO 35/6-110 | 3x15 | 3x11 | 3x28.5 | 92 | 77 | 60 | 750lt | PN16 |
| 3 PFK KO 35/7-150 | 3x20 | 3x15 | 3x28.5 | 112 | 92 | 70 | 750lt | PN16 |
| 3 PFK KO 35/8-150 | 3x20 | 3x15 | 3x32.5 | 130 | 108 | 80 | 750lt | PN16 |
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| 3 PFK KO 35/3-55 | 4" | 3" | 1040 | 780 | 468 | 190 | 1310 |
| 3 PFK KO 35/4-75 | 4" | 3" | 1040 | 780 | 514 | 190 | 1310 |
| 3 PFK KO 35/5-110 | 4" | 3" | 1050 | 1043 | 559 | 190 | 1435 |
| 3 PFK KO 35/6-110 | 4" | 3" | 1050 | 1043 | 605 | 190 | 1435 |
| 3 PFK KO 35/7-150 | 4" | 3" | 1050 | 1043 | 651 | 190 | 1435 |
| 3 PFK KO 35/8-150 | 4" | 3" | 1050 | 1043 | 696 | 190 | 1435 |
| SCOPE OF DELIVERY |
- 3xVertical Shaft Centrifugal Pump
- Three Pump Control Frequency Panel
- Manometer
- 3xPressure Switch
- Level Floater
- Pump Chassis
- Suction - Discharge Collectors
- The products listed above are delivered as a set, not separately.
| THINGS TO CONSIDER |
- KO Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
- Installation Service of the Product Belongs to the User.
- In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
- The commissioning process is free.
- Products that are not commissioned by an authorized service are out of warranty.
