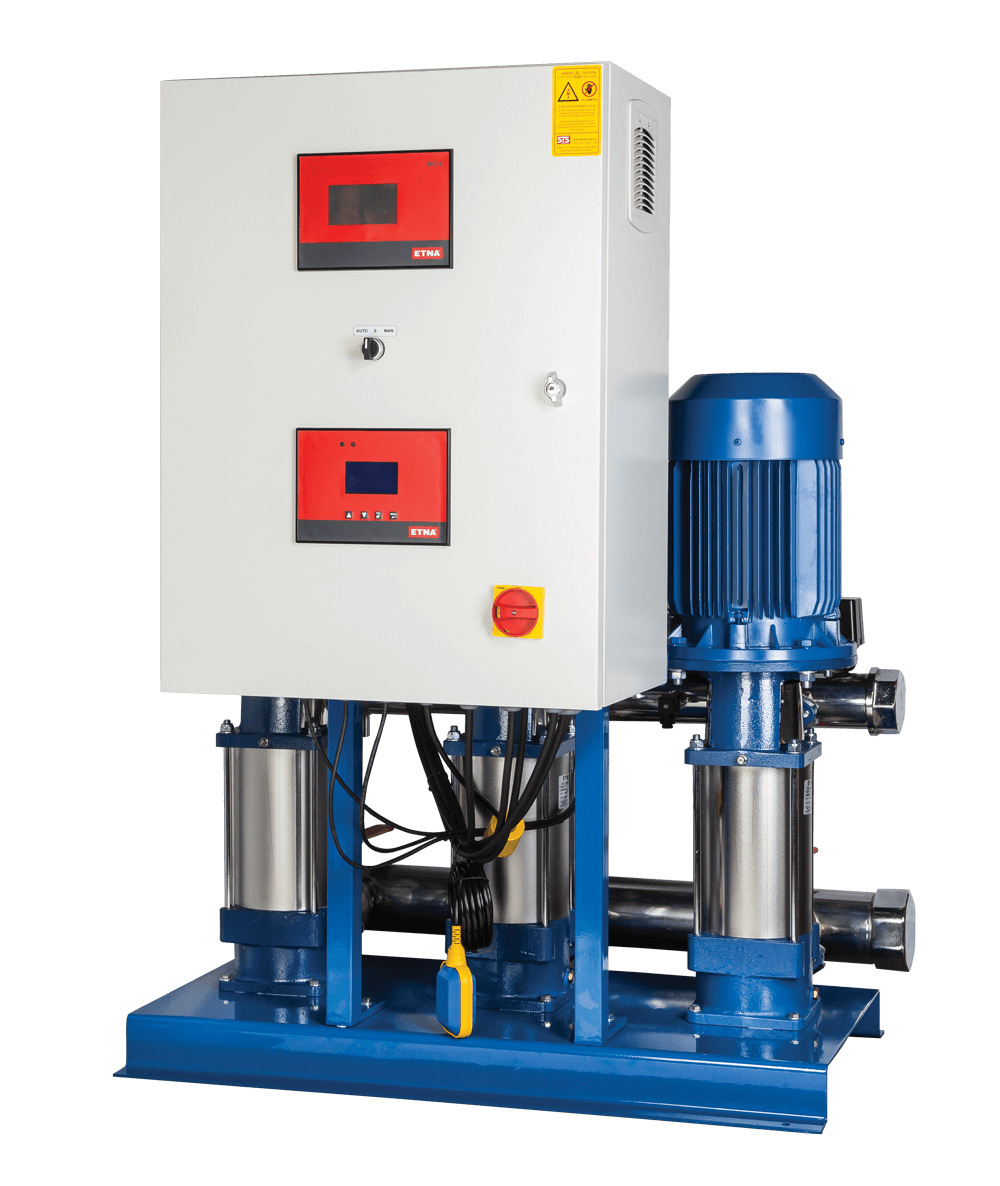

3 PFK KO 15/12-75 Three Pump Frequency Converter Hydrophore
7.752,69 USD
Brand
Stock code
3pfkko151275
Manufacturing Period
24 Month
Price
7.752,69 USD
THREE PUMP FREQUENCY CONVERTER HYDROPHORS (3 PFK KO 15 SERIES) |  |
ETNA 3 PFK KO SERIES - 3 PUMP HYDROPHORS Buildings such as residences, hospitals, schools, shopping malls that require high pressure and flow, These are energy-saving products used in industrial processes. |  |
| GENERAL FEATURES |
• Epoxy painted DKP control panel
• Optimum efficiency with PID control thanks to specially designed 4.3'' touch screen PLC.
• Ability to control multiple pumps with a single frequency inverter
• Synchronous aging sequential operation feature
• Intervention by cutting off the power with a locked paco switch
• Low current protection against dry operation
• 2nd protection preventing operation without water (5 m level float)
• 3rd protection against dry operation low pressure protection
• Adjustable low and high current protection
• Phase sequence and phase loss protection
• Pressure transmitter in automatic mode, pressure switch-dependent operation in manual mode
• Suction and discharge collector, manometer and pressure switch
• Spring type silent stainless steel check valve
• Steel chassis with rubber pads to prevent vibration and oven-painted paint
• Operating data is transferred to BMS separately via Modbus RS 485 and dry contacts
| TECHNICAL SPECIFICATIONS |
(IT IS SINGLE PUMP FLOW RATE)
| MODEL | STRENGTH | RATED CURRENT A | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 3x12 | 3x15 | 3x18 | ||||
| 3 PFK KO 15/4-22 | 3x3 | 3x2.2 | 3x4.9 | 51 | 42 | 30 | 200lt | PN10 |
| 3 PFK KO 15/5-30 | 3x4 | 3x3 | 3x6.2 | 64 | 53 | 37 | 200lt | PN10 |
| 3 PFK KO 15/6-40 | 3x5.5 | 3x3 | 3x8 | 77 | 64 | 45 | 300lt | PN10 |
| 3 PFK KO 15/7-40 | 3x5.5 | 3x4 | 3x8 | 90 | 79 | 56 | 300lt | PN16 |
| 3 PFK KO 15/8-55 | 3x7.5 | 3x5.5 | 3x10.9 | 107 | 90 | 67 | 300lt | PN16 |
| 3 PFK KO 15/9-55 | 3x7.5 | 3x5.5 | 3x10.9 | 120 | 102 | 73 | 300lt | PN16 |
| 3 PFK KO 15/12-75 | 3x10 | 3x5.5 | 3x14.1 | 161 | 137 | 95 | 500lt | PN25 |
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| 3 PFK KO 15/4-22 | 21/2" | 21/2" | 800 | 560 | 373 | 130 | 1310 |
| 3 PFK KO 15/5-30 | 21/2" | 21/2" | 800 | 560 | 411 | 130 | 1310 |
| 3 PFK KO 15/6-40 | 21/2" | 21/2" | 800 | 560 | 457 | 130 | 1310 |
| 3 PFK KO 15/7-40 | 21/2" | 21/2" | 800 | 560 | 495 | 130 | 1310 |
| 3 PFK KO 15/8-55 | 21/2" | 21/2" | 800 | 560 | 533 | 130 | 1310 |
| 3 PFK KO 15/9-55 | 21/2" | 21/2" | 800 | 560 | 572 | 130 | 1310 |
| 3 PFK KO 15/12-75 | 21/2" | 21/2" | 800 | 560 | 686 | 130 | 1310 |
| SCOPE OF DELIVERY |
- 3xVertical Shaft Centrifugal Pump
- Three Pump Control Frequency Panel
- Manometer
- 3xPressure Switch
- Level Floater
- Pump Chassis
- Suction - Discharge Collectors
- The products listed above are delivered as a set, not separately.
| THINGS TO CONSIDER |
- KO Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
- Installation Service of the Product Belongs to the User.
- In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
- The commissioning process is free.
- Products that are not commissioned by an authorized service are out of warranty.
