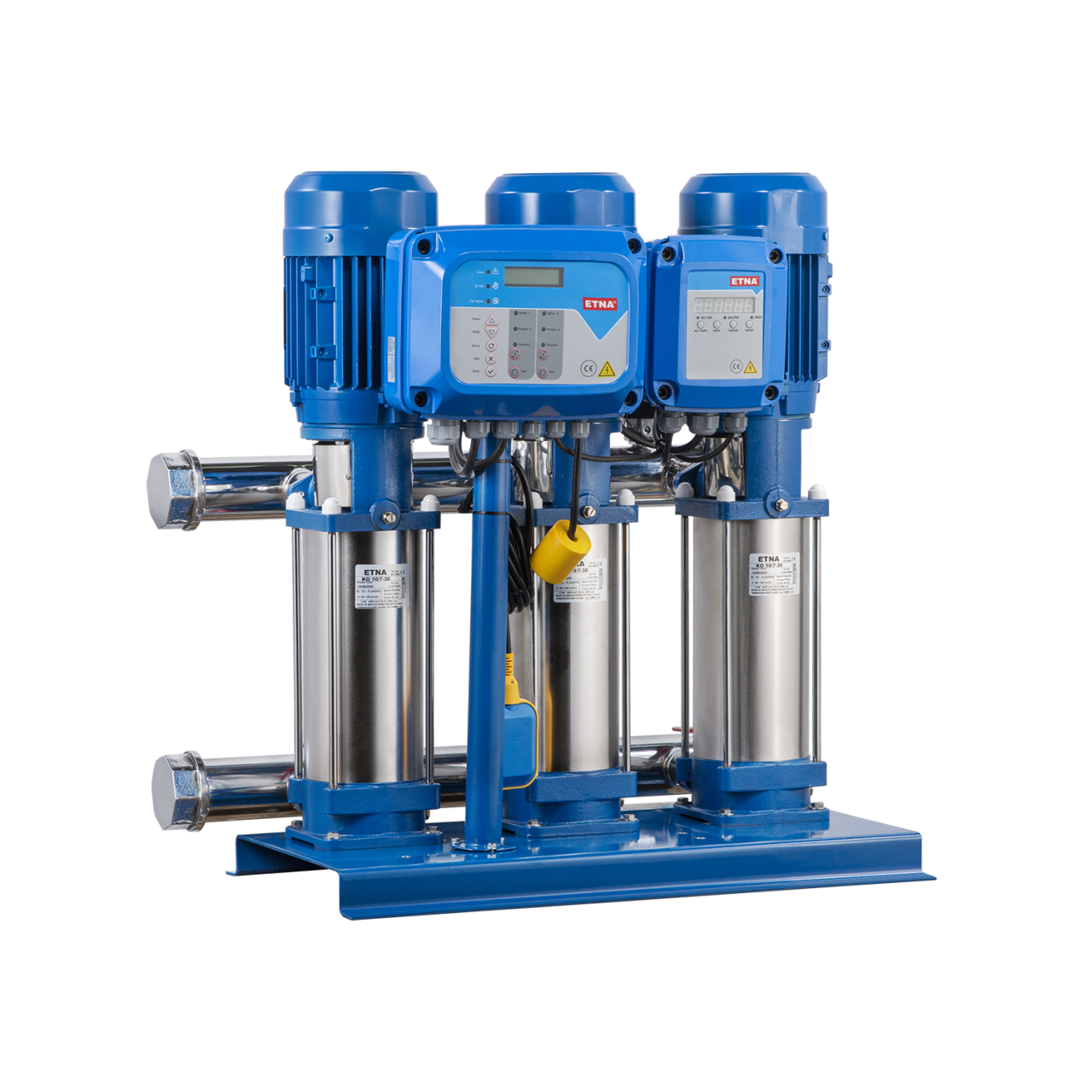

3 KO 10/10-40 Three Pump Vertical Shaft Potable Water Hydrophore
3.753,45 USD
Brand
Stock code
3ko101040
Manufacturing Period
24 Month
Price
3.753,45 USD
3 PUMP VERTICAL SHAFT WATER HYDRAULIC BOOSTER (3 KO 10 SERIES) |  |
ETNA 3 KO SERIES - 3 PUMP HYDROPHORS Buildings such as residences, hospitals, schools, shopping malls that require high pressure and flow, It is used in industrial processes and agricultural areas. |  |
| GENERAL FEATURES |
| • Electronic control panel • Low current protection against dry operation • 2nd protection preventing operation without water (5 m level float) • Adjustable low and high current-voltage protection • Phase sequence and phase loss protection • Monitoring of pump ready circuit and error conditions on the screen • Ability to monitor phase voltages and motor currents on the screen • In case of failure, the error name can be read on the screen. • Sequential operation synchronous aging feature • Suction and discharge collector, manometer and pressure switch • Spring type silent stainless steel check valve • Steel chassis with rubber pads to prevent vibration and oven-painted paint |
| TECHNICAL SPECIFICATIONS |
(IT IS SINGLE PUMP FLOW RATE)
| MODEL | STRENGTH | RATED CURRENT A | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 3x9 | 3x12 | 3x15 | ||||
| 3 KO 10/5-22 | 3x3 | 3x2.2 | 3x4.9 | 61 | 48 | 27 | 200lt | PN10 |
| 3 KO 10/S7-22 | 3x3 | 3x2.2 | 3x4.9 | 74 | 56 | 38 | 200lt | PN10 |
| 3 KO 10/7-30 | 3x4 | 3x3 | 3x6.2 | 86 | 66 | 39 | 300lt | PN16 |
| 3 KO 10/9-40 | 3x5.5 | 3x4 | 3x8 | 110 | 85 | 51 | 300lt | PN16 |
| 3 KO 10/10-40 | 3x5.5 | 3x4 | 3x8 | 125 | 95 | 59 | 300lt | PN16 |
| 3 KO 10/12-55 | 3x7.5 | 3x5.5 | 3x10.9 | 153 | 122 | 81 | 300lt | PN16 |
| HYDROPHORE DIMENSIONS |
| MODEL | DIMENSIONS (mm) | ||||||
| Entrance | Exit | A | B | C | D | H | |
| 3 KO 10/5-22 | 21/2" | 21/2" | 800 | 560 | 411 | 130 | 800 |
| 3 KO 10/S7-22 | 21/2" | 21/2" | 800 | 560 | 487 | 130 | 852 |
| 3 KO 10/7-30 | 21/2" | 21/2" | 800 | 560 | 487 | 130 | 852 |
| 3 KO 10/9-40 | 21/2" | 21/2" | 800 | 560 | 572 | 130 | 963 |
| 3 KO 10/10-40 | 21/2" | 21/2" | 800 | 560 | 610 | 130 | 1000 |
| 3 KO 10/12-55 | 21/2" | 21/2" | 800 | 560 | 587 | 130 | 1100 |
| SCOPE OF DELIVERY |
- 3xVertical Shaft Centrifugal Pump
- Three Pump Control Panel
- Manometer
- 3xPressure Switch
- Level Floater
- Pump Chassis
- Suction - Discharge Collectors
- The products listed above are delivered as a set, not separately.
| THINGS TO CONSIDER |
- KO Series Hydrophores and Hydrophore Expansion Tank Must Be Ordered Separately.
- Installation Service of the Product Belongs to the User.
- In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
- The commissioning process is free.
- Products that are not commissioned by an authorized service are out of warranty.
