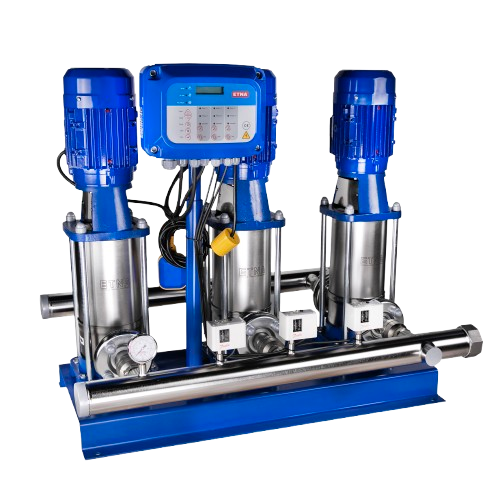

3 KI 12/6-40 THREE PUMP COMPLETE STAINLESS STEEL HYDRAULIC HYDRAULIC

4.709,55 USD
Brand
Stock code
3ki12640
Manufacturing Period
24 Month
Price
4.709,55 USD

COMPLETE STAINLESS STEEL TWO PUMP HYDROPHORS
(3KI 12 SERIES)


All surfaces in contact with water are made of AISI 304 quality stainless steel,
They are compact, high efficiency pumps. With bottom inlet, top outlet connection structure,
It takes up little space and is preferred in hydrophore systems.
Areas of Use
• Water purification systems
• Pressurized water supply in residential and commercial buildings
• Garden irrigation systems
• Agricultural irrigation systems
• Industrial applications
• Water purification systems
• Clean water transfer


GENERAL FEATURES
• Electronic control panel
• Low current protection against dry operation
• 2nd protection preventing operation without water (5 m level float)
• Adjustable low and high current-voltage protection
• Phase sequence and phase loss protection
• Ability to monitor fault and error conditions on the screen via error codes
• Ability to read current and voltage values on the screen
• Spring type silent check valve and five-way valve
• Manometer and pressure switch
• Steel chassis with rubber pads to prevent vibration and oven-painted paint

* Closed Expansion Tank and Connection Flex are not included in the scope of delivery. If there is no existing expansion tank, it must be ordered separately.

MATERIAL PROPERTIES
Pump Body AISI 304 Stainless Steel
Pump Shaft AISI 304 Stainless Steel
Fan and Diffuser AISI 304 Stainless Steel
Mechanical Seal Carbon / Ceramic / NBR
Input-Output Body AISI 304 Stainless Steel
Liquid Temperature 0-100 ° C

PERFORMANCE VALUES


IT IS A SINGLE PUMP CURVE.


MODEL STRENGTH
RATED CURRENT
(A)
STUDY
PRESSURE
FLOW RATE (m³/h) Recommended Tank
HP kW 3x9 3x12 3x15 VOLUME PRESSURE
3 KI 12/5-30 3x4 3x3 3x6.2mSS 57 50 39 200lt PN10
3 KI 12/6-40 3x5.5 3x4 3x8 68 60 47 200lt PN10
3 KI 12/8-55 3x7.5 3x5.5 3x10.9 91 80 63 200lt PN10
3 KI 12/9-55 3x7.5 3x5.5 3x10.9 103 91 72 300lt PN16
3 KI 12/10-75 3x10 3x7.5 3x14.1 115 101 80 300lt PN16
3 KI 12/12-75 3x10 3x7.5 3x14.1 137 121 95 300lt PN16

HYDROPHORE DIMENSIONS



MODEL DIMENSIONS (mm)
Entrance Exit A B C H WEIGHT
kg
3 KI 12/5-30 21/2" 21/2" 1040 730 210 850 165
3 KI 12/6-40 910 191
3 KI 12/8-55 1090 221
3 KI 12/9-55 1120 225
3 KI 12/10-75 1150 273
3 KI 12/12-75 1210 280
