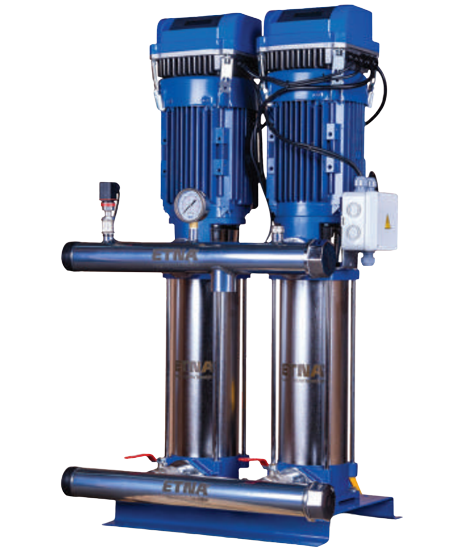

2 HF KO 25/3-30 - Dual Pump Frequency Converter Domestic Water Hydrophore
3.558,91 USD
Brand
Stock code
2hfko25330
Manufacturing Period
24 Month
Price
3.558,91 USD
TWO PUMP FREQUENCY CONVERTER HYDROPHORS 2 HF KO SERIES |  |
ETNA 2 HF KO SERIES TWO PUMP FREQUENCY CONVERTER HYDROPHORS REDUCE YOUR ENERGY COSTS WITH... |  |
| GENERAL FEATURES |
| • Each pump has a separate frequency converter. |
| • Water consumption with variable flow at constant pressure |
| • No more noise caused by the check valve |
| • No more plumbing problems caused by cavitation |
| • Energy saving |
| • Quiet operation |
| • Thanks to the frequency inverter, soft start and stop, high resistance to mechanical stress and much longer life. |
| • Protection against dry operation thanks to low current protection |
| • 2nd protection preventing operation without water (5 m level float) |
• It is resistant to working without water for long periods thanks to its special bearing system. |
| PUMP FEATURES |
| Body | Stainless steel |
| Shaft | Stainless steel |
| Wheel | Noryl |
| Diffuser | Noryl |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Login - Logout | Cast Iron |
| PERFORMANCE VALUES |
* IT IS A SINGLE PUMP CURVE.
MODEL | STRENGTH | MENTION CURRENT (A) | H | FLOW RATE (m³/h) | RECOMMENDED TANK | ||||
| HP | kW | 2x18 | 2x24 | 2x30 | VOLUME | PRESSURE | |||
| 2 HF KO 25/3-30 | 2x4 | 2x3 | 2x6.2 | Operating The pressure (bar) | 3.3 | 2.4 | 1.1 | 100LT | PN10 |
| 2 HF KO 25/4-40 | 2x5.5 | 2x4 | 2x8 | 4.5 | 3.5 | 1.8 | 100LT | PN10 | |
| 2 HF KO 25/6-55 | 2x7.5 | 2x5.5 | 2x10.9 | 6.6 | 5.2 | 3.1 | 100LT | PN10 | |
| 2 HF KO 25/8-75 | 2x10 | 2x7.5 | 2x14.1 | 9.2 | 7.1 | 4.1 | 100LT | PN16 | |
| DIMENSIONS |
| MODEL | DIMENSIONS | ||||||
| Entrance | Exit | A | B | C | D | H | |
| 2 HF KO 25/3-30 | 21/2" | 21/2" | 670 | 530 | 393 | 165 | 890 |
| 2 HF KO 25/4-40 | 21/2" | 21/2" | 670 | 530 | 457 | 165 | 990 |
| 2 HF KO 25/6-55 | 21/2" | 21/2" | 670 | 530 | 572 | 165 | 1120 |
| 2 HF KO 25/8-75 | 21/2" | 21/2" | 670 | 530 | 686 | 165 | 1230 |
| SCOPE OF DELIVERY |
- 2 PCS KO SERIES VERTICAL SHAFT PUMP
- 2 HYDROKON FREQUENCY CONVERTER DEVICES
- CHASSIS & COLLECTORS
- TRANSMITTER
- ALL LINKS
- BARCODE PACKAGING
| THINGS TO CONSIDER |
**A safety switch is installed to prevent the pressure in the hydrophore system from exceeding 16 bar. A PN 16 balance tank can be used for these systems.
• Flexible hose is not recommended for pressures of 16 bar and above.
• Stopping pressure is minimum 1.5 bar above the starting pressure.
• In order for the product to be under warranty, the first start-up must be done by ETNA Authorized Services.
• If the hydrophore will suction from minus elevation, please get information from our company.
• The recommended tank and connection flex are not included in the scope of delivery and must be ordered separately.
