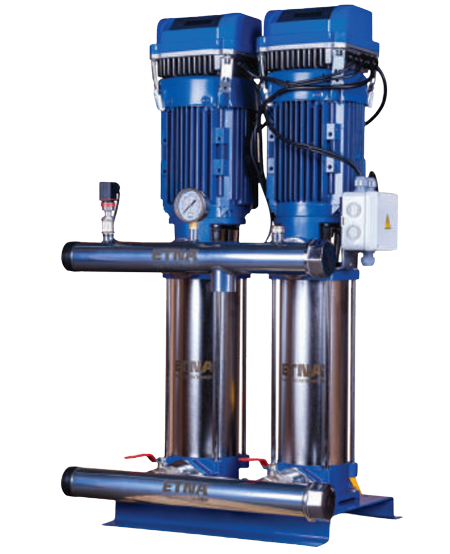

2 HF KO 15/9-55 - Dual Pump Frequency Converter Domestic Water Hydrophore

2 HF KO 15/9-55 - Dual Pump Frequency Converter Domestic Water Hydrophore
4.554,54 USD
Category
Dual Pump Frequency Converter Hydrophores
Brand
ETNA
Stock code
2hfko15955
Manufacturing Period
24 Month
Price
4.554,54 USD
Compare
Product information
Comments
Payment Options
suggestions
div>
TWO PUMP FREQUENCY CONVERTER HYDROPHORS
2 HF KO SERIES
ETNA 2 HF KO SERIES
TWO PUMP FREQUENCY CONVERTER HYDROPHORS
REDUCE YOUR ENERGY COSTS WITH...


GENERAL FEATURES

• Each pump has a separate frequency converter.
• Water consumption with variable flow at constant pressure
• No more noise caused by the check valve
• No more plumbing problems caused by cavitation
• Energy saving
• Quiet operation
• Thanks to the frequency inverter, soft start and stop, high resistance to mechanical stress and much longer life.
• Protection against dry operation thanks to low current protection
• 2nd protection preventing operation without water (5 m level float)
• It is resistant to working without water for long periods thanks to its special bearing system.


PUMP FEATURES


Body Stainless steel
Shaft Stainless steel
Wheel Noryl
Diffuser Noryl
Mechanical Seal Carbon / Ceramic / NBR
Login - Logout Cast Iron


PERFORMANCE VALUES
* IT IS A SINGLE PUMP CURVE.

MODEL
STRENGTH
MENTION
CURRENT
(A)
H FLOW RATE (m³/h) RECOMMENDED TANK
HP kW 2x12 2x15 2x18 VOLUME PRESSURE
2 HF KO 15/4-22 2x3 2x2,2 2x4.9
Operating
The pressure
(bar)
5.1 4.2 3 100LT PN10
2 HF KO 15/5-30 2x4 2x3 2x6.2 6.4 5.3 3.7 100LT PN10
2 HF KO 15/6-40 2x5.5 2x4 2x8 7.7 6.4 4.5 100LT PN10
2 HF KO 15/7-40 2x5.5 2x4 2x8 9 7.9 5.6 100LT PN16
2 HF KO 15/8-55 2x7.5 2x5.5 2x10.9 10.7 9 6.7 100LT PN16
2 HF KO 15/9-55 2x7.5 2x5.5 2x10.9 12 10.2 7.3 100LT PN16
2 HF KO 15/12-75 2x10 2x7.5 2x14.1 16.1 13.7 9.5 100LT PN25
DIMENSIONS
Be the first to review this product!
Write a comment
Price information, pictures, product descriptions and other issues that you find inadequate points you can send us using the suggestion form.
Thank you for your comments and suggestions.
2 HF KO 15/9-55 - Dual Pump Frequency Converter Domestic Water Hydrophore 2hfko15955
2 HF KO 15/9-55 - Dual Pump Frequency Converter Domestic Water Hydrophore

Recommend

*
*
*
IdeaSoft® | E-Ticaret paketleri ile hazırlanmıştır.
MODEL DIMENSIONS
Entrance Exit A B C D H
2 HF KO 15/4-22 2" 2" 670 530 373 130 870
2 HF KO 15/5-30 2" 2" 670 530 411 130 910
2 HF KO 15/6-40 2" 2" 670 530 457 130 990
2 HF KO 15/7-40 2" 2" 670 530 495 130 1025
2 HF KO 15/8-55 2" 2"
