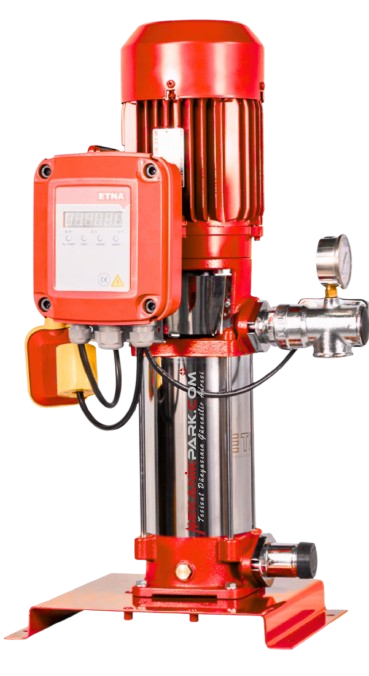

1 KO 4/9-15 JOCKEY PUMP (PILOT BOOSTER)
816,81 USD
Category
Brand
Stock code
1ko4915plt
Manufacturing Period
24 Month
Price
816,81 USD
VERTICAL SHAFT MULTI-STAGE JOCKEY PUMP (PILOT HYDROPHOR) (1 KO 4 PLT SERIES) |  |
Used in fire pump systems and the main fire pump to prevent unnecessary operation It is the auxiliary pump that comes into operation before the main pump. The function of the jockey pump is to keep the system under pressure, is to tolerate losses-leakages and pressure drops . |  |
| GENERAL FEATURES |
- Electronic control panel
- Low current protection against dry operation
- 2nd protection preventing dry operation (5 m level float)
- Adjustable low and high current-voltage protection
- Phase sequence and phase loss protection
- Ability to monitor fault and error conditions on the screen via LEDs
- Ability to read current and voltage values on the screen
- Spring type silent stainless steel check valve
- Manometer and pressure switch
- Steel chassis with rubber pads to prevent vibration and oven-painted paint
| STRUCTURAL FEATURES |
| Body and Shaft | Stainless steel |
| Fans and Diffusers | Norly |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Input - Output Body | Cast Iron |
| TECHNICAL SPECIFICATIONS |
| MODEL | ENGINE POWER HP | ENGINE POWER kW | RECOMMENDED TANK VOLUME |
| 1 KO 4/4-0.75 | 1 | 0.75 | 100LT - PN10 |
| 1 KO 4/6-11 | 1.5 | 1.1 | 100LT - PN10 |
| 1 KO 4/7-11 | 1.1 | 1.1 | 100LT - PN10 |
| 1 KO 4/8-15 | 2 | 1.5 | 100LT - PN10 |
| 1 KO 4/9-15 | 2 | 2.2 | 100LT - PN10 |
| DIMENSIONS |
| MODEL | INLET - OUTLET DIAMETER | A | B | C | D | H |
| 1 KO 4/4-0.75 | 1"- 1" | 300 | 400 | 313 | 130 | 534 |
| 1 KO 4/6-11 | 1"- 1" | 300 | 400 | 368 | 130 | 580 |
| 1 KO 4/7-11 | 1"- 1" | 300 | 400 | 392 | 130 | 605 |
| 1 KO 4/8-15 | 1"- 1" | 300 | 400 | 409 | 130 | 630 |
| 1 KO 4/9-15 | 1"- 1" | 300 | 400 | 433 | 130 | 730 |
* Dimensions stated above are in mm.
| THINGS TO CONSIDER |
- Thanks to its special bearing system, it is resistant to working without water for long periods.
- Connection flex and balancing tank must be ordered separately.
- The stop pressure is minimum 1.5 bar above the start pressure.
- In order for the product to be covered by the warranty, the first start-up must be done by our authorized services.
- If the hydrophore will suction from minus elevation, please get information from our company.
