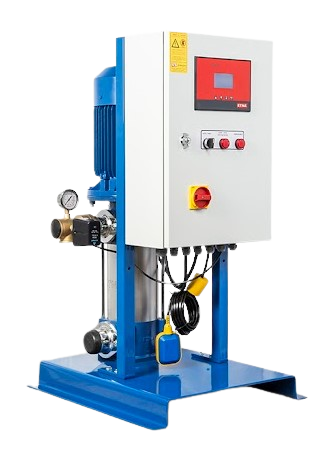

1 KO 35/5-110 - Vertical Shaft Domestic Water Hydrophore
2.004,12 USD
Brand
Stock code
1ko355110
Manufacturing Period
24 Month
Price
2.004,12 USD
VERTICAL SHAFT MULTI-STAGE CENTRIFUGAL PUMP HYDROPHORE SETS (1 KO 35 SERIES) |  |
Residence-apartment, commercial building (hotel, hospital, dormitory, school etc.) required in irrigation systems and agricultural applications Designed and manufactured to meet the need for pressurized water hydrophore systems. |  |
| GENERAL FEATURES |
- Electronic control panel
- Low current protection against dry operation
- 2nd protection preventing dry operation (5 m level float)
- Adjustable low and high current-voltage protection
- Phase sequence and phase loss protection
- Ability to monitor fault and error conditions on the screen via LEDs
- Ability to read current and voltage values on the screen
- Spring type silent stainless steel check valve
- Manometer and pressure switch
- Steel chassis with rubber pads to prevent vibration and oven-painted paint
- Thanks to its special bearing system, it is resistant to working without water for long periods.
| STRUCTURAL FEATURES |
| Body and Shaft | Stainless steel |
| Fans and Diffusers | Nolly |
| Mechanical Seal | Carbon / Ceramic / NBR |
| Input - Output Body | Cast Iron |
| TECHNICAL SPECIFICATIONS |
| MODEL | ENGINE POWER HP | ENGINE POWER kW | RECOMMENDED TANK VOLUME |
| 1 KO 35/3-55 | 7.5 | 5.5 | 750LT - PN10 |
| 1 KO 35/4-75 | 10 | 7.5 | 750LT - PN10 |
| 1 KO 35/5-110 | 15 | 11 | 750LT - PN10 |
| 1 KO 35/6-110 | 15 | 11 | 750LT - PN16 |
| 1 KO 35/7-150 | 20 | 15 | 750LT - PN16 |
| 1 KO 35/8-150 | 20 | 15 | 750LT - PN16 |
| DIMENSIONS |
| MODEL | INLET - OUTLET DIAMETER | A | B | C | D | H |
| 1 KO 35/3-55 | 21/2"-2" | 450 | 470 | 468 | 190 | 880 |
| 1 KO 35/4-75 | 21/2"-2" | 450 | 470 | 514 | 190 | 926 |
| 1 KO 35/5-110 | 21/2"-2" | 605 | 470 | 559 | 190 | 1070 |
| 1 KO 35/6-110 | 21/2"-2" | 605 | 470 | 605 | 190 | 1115 |
| 1 KO 35/7-150 | 21/2"-2" | 605 | 470 | 651 | 190 | 1265 |
| 1 KO 35/8-150 | 21/2"-2" | 605 | 470 | 696 | 190 | 1310 |
| THINGS TO CONSIDER |
- Connection flex and balancing tank must be ordered separately.
- The stop pressure is minimum 1.5 bar above the start pressure.
- In order for the product to be covered by the warranty, the first start-up must be done by our authorized services.
- If the hydrophore will suction from minus elevation, please get information from our company.
